Use TEZI to install image

After you run the TEZI on the target, you can access it two ways.
  • Directly via a display connected to the board. Ensure you have a USB keyboard and mouse connected to the board to interact with the TEZI.
  • VNC client. You can access the it using the address 192.168.11.1 through the virtual Ethernet Link that's connected from your computer to the board. This connection is a virtual Ethernet link that's created on top of USB via Remote Network Driver Interface Specification (RNDIS).
Once you have access to TEZI on the target, you can install an OS images, such as Toradex Embedded Linux, or QNX OS to the internal eMMC storage.

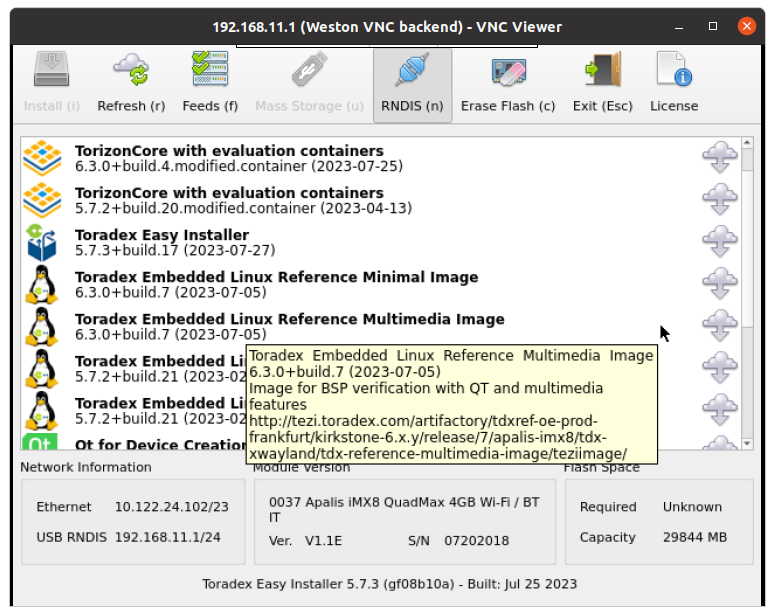

Figure 1Install Toradex Embedded Linux Image using TEZI

For detailed information on how to install an image, please see the Toradex website at https://developer.toradex.com/easy-installer/toradex-easy-installer/#detailed-manual.

please also see Use QNX IPL to boot board if you decide to use QNX IPL to boot QNX OS on the target.
