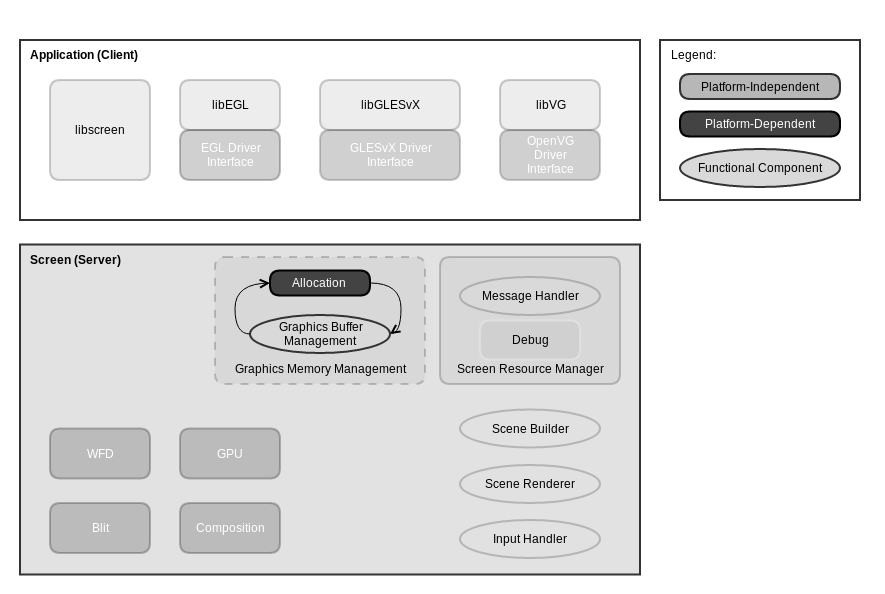

Allocation module

The scrmem-based allocator

Screen expects the create_scrmem() function to be defined by the allocation module:

int (*create_scrmem)( int width,
                      int height,
                      int format,
                      int usage,
                      size_t count,
                      struct scrmem **scrmem );

The destructor for this memory is specified during scrmem creation; refer to the libscrmem description for additional information. The destructor definition comes from the allocate module and not the caller. When the graphics buffer is no longer required, the Graphics Buffer Management unmaps and deallocates the corresponding the gbuf object (i.e., when it's no longer used by another other process or thread).

Interface logic

1. Determine the size of the buffer based on requested height, width, usage and format
2. Determine appropriate memobj attributes, such as if the memory should be typed, physical contiguous, have special cache flags.

3. For each buffer:

   1. If memory will be allocated by the libmemobj, create memobj with attributes (from step 2). If libmemobj needs to wrap memory: allocate/obtain required memory and either provide a shared-memory FD or vaddr to the libmemobj for wrapping. If libmemobj handle is wrapping an already allocated memory, then ensure that memory can be freed when it is no longer needed (memobj destructor can be used for this cleanup).
   2. Allocate and fill the win_image_t structure.
   3. Create a scrmem object with a memobj handle (from step 3a) and a win_image_t structure (from step 3b).
   4. Associate an appropriate destructor for the scrmem object. The destructor is part of the allocator design; it's responsible for cleaning up memory after the scrmem object is no longer required. At the very least, the destructor should free memory used by the win_image_t structure (allocated in step 3b) and close the memobj (from step 3a).

The win_image_t-based allocator

In this interface, the returned images are described by the win_image_t structure. Screen server wraps this information into a libmemobj object before encapsulating it with gbuf information. This interface requires both the create_images() and destroy_images() functions:

create_images()

int (*create_images)( int width,
                      int height,
                      int format,
                      int usage,
                      size_t count,
                      struct win_image **images );

The parameters include:

width

The width of the image buffer, in pixels.

height

The height of the image buffer, in pixels.

format

A 32-bit integer, with the lower 16-bits representing an enum of pixel formats defined in screen.h and the higher 16-bits representing a platform-specific variant of the pixel format, if present.

usage

A bitmask indicating the intended usage for the graphics buffer. Available values are defined in screen.h.

count

The number of buffers to create.

images

A pointer used to return the allocated buffer.

destroy_images()

int (*destroy_images)( size_t count,
                       struct win_image **images );

The parameters include:

count

The number of buffers to destroy.

images

A pointer to the buffer location.

The WFD allocator

The WFD_QNX_egl_images extension

This interface is not a stand-alone module, but is a part of the display's WFD driver, which must support the WFD_QNX_egl_images extension. The Screen server uses the driver associated with the display (SCREEN_PROPERTY_DISPLAY) for the window, stream, or pixmap objects that will own the buffers.

As with the create_images() and destroy_images() interfaces, the returned object is of win_image_t type. The Screen server wraps this allocation into a libmemobj object before encapsulating it with gbuf information.

Both wfdCreateWFDEGLImagesQNX() and wfdDestroyWFDEGLImagesQNX() are required parts for this interface; refer to WF/wfdext.h for more information.

Information on buffer creation

Special format bits

The top 16 bits of the image format, if non-zero, indicate a platform-specific variant of whatever format is associated with the lower 16 bits. For example, SCREEN_FORMAT_RGBA8888 has value 8; the format 0x30008 would have 8-bit R,G,B,A components, but might be tiled or have some other unusual memory layout. The caller can set these bits to request a specific format (if not possible, the call must fail). The allocator is also free to return a special format when not requested, if it does not conflict with the specified usage flags. In particular, the format must not be changed if READ and/or WRITE were requested.

Usage flags

The usage flags (SCREEN_USAGE_*) are described in the Screen usage flag types section of the Screen Graphics Subsystem Developer's Guide. A set of requested flags is passed to one of the above allocation APIs, which are expected to return an error if they don't support the combination of flags or failed to allocate for those purposes. On success, the returned win_image_t structures are expected to have all requested usages, but may have additional ones added if the allocator determines the buffers are suitable for other uses.

Note that these flags may be problematic for composition, including external composition, because there's no way to indicate which flags the compositor requires. Based on the expectations for the platform, the allocator may need to act as if certain flags are always present. For example, if the platform uses the gles compositor, all buffers will need to be suitable for the GPU driver.

SCREEN_USAGE_DISPLAY

If requested, memory that is directly displayable by the WFD driver is required, and the allocation request must fail if it is not available. Screen always requests this for framebuffers.

If not requested, the allocator should add the bit if the allocated memory happens to be displayable. For example, some display controllers require physically contiguous memory, and the OS will often provide contiguous memory even when not specifically requested.

SCREEN_USAGE_OVERLAY

When requested, this implies SCREEN_USAGE_DISPLAY. An allocator shouldn't add this bit if not requested. It is intended more to change Screen's behavior than the allocator's.

SCREEN_USAGE_READ, SCREEN_USAGE_WRITE

If either of these usages are requested, the client expects to receive memory in the exact layout they requested. The allocator cannot substitute a special format in this case.

SCREEN_USAGE_NATIVE

This indicates the buffer must be usable as a source or destination (ideally both) for the platform's native blitter. If that is gles2blt, the flag is basically equivalent to SCREEN_USAGE_OPENGL_ES2.

SCREEN_USAGE_VIDEO

On some platforms, this implies suitability for a hardware video encoder/decoder.

SCREEN_USAGE_CAPTURE

This means the platform's video capture library can capture data into the buffer.

SCREEN_USAGE_ROTATION

If set, the allocator needs to fill strides[1] in the returned win_image_t structures. Screen swaps the strides when rotating the buffer (the size, offset, and pointers remain the same).

Typed memory pool

On some hardware platforms, the memory has to be allocated from a typed-memory pool. This pool can be specified with the alloc-pool setting in the globals section of the graphics.conf file.

Rotation

The support for rotation is hardware-depended. On the systems with rotation support, the allocation module will allocate addition memory for the buffer with SCREEN_USAGE_ROTATION. If WFD doesn't support rotation, the Screen server allocates additional graphic's buffers to perform rotation during composition.
