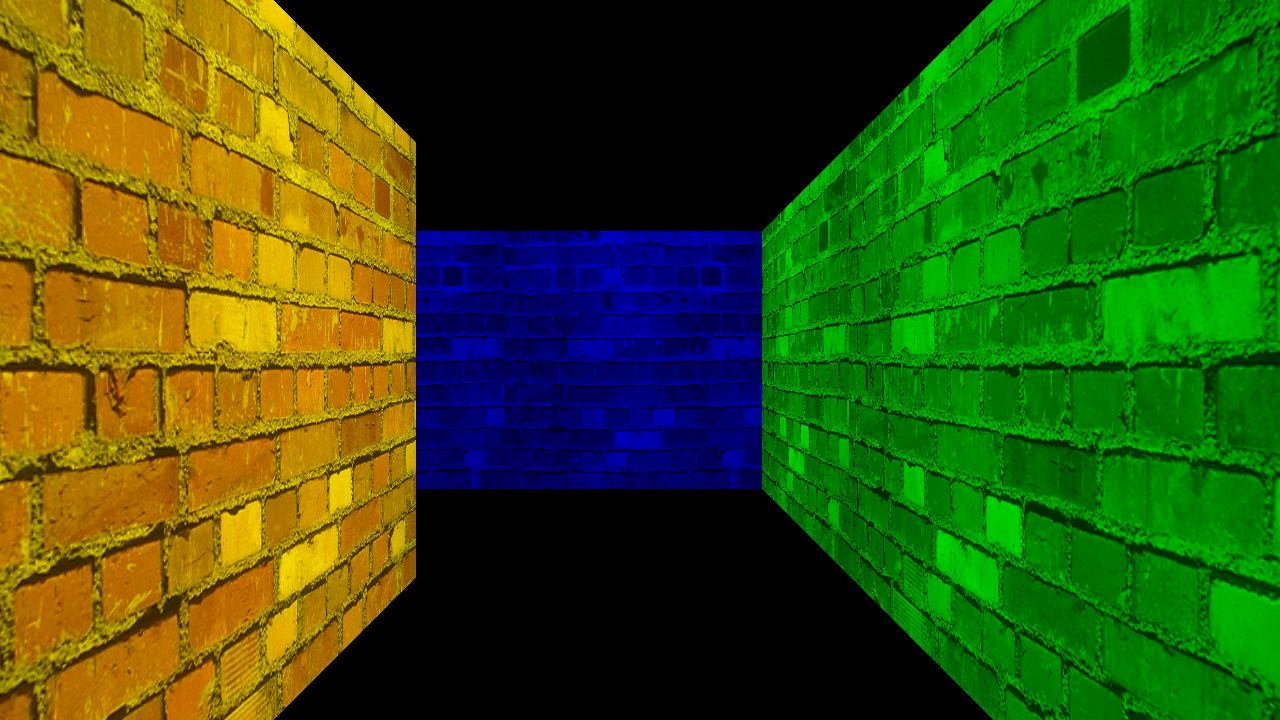

gles2-maze
Demonstrate how to use texture, as well as vertex and fragment shaders
Syntax:
gles2-maze [-bg-alpha=background_alpha_value] [-config=egl_configuration] [-display=display_id] [-fg-alpha=foreground_alpha_value] [-frame-limit=frames] [-interval=swap_interval] [-nbuffers=count] [-pipeline=pipeline_id] [-pos=x,y] [-size=widthxheight] [-transparency=transparency_mode] [-verbose] [-zorder=zorder]
Runs on:
QNX OS
Options:
- -bg-alpha=background_alpha_value
-
Set the background to the specified alpha value as a float in the range [0.0f..1.0f]. If you don't specify the bg-alpha option, gles2-maze uses 0.0f.
- -config=egl_configuration
-
Set optional EGL configuration specifiers. These optional configuration specifiers are set using a comma-separated list. The specifiers may include the following: pixel format and/or multi-sampling specifications, or an EGL configuration number. If you're using an EGL configuration number, it must not be specified with other specifiers.
- Pixel format
-
Specify pixel format as one of the following:
- rgba1010102 or rgbx1010102
- bgra1010102 or bgrx1010102
- rgba8888 or rgbx8888
- bgra8888 or bgrx8888
- rgba5551 or rgbx5551
- rgba4444 or rgbx4444
- rgb565
where "a" indicates alpha bits and "x" indicates that the alpha bits are ignored.
- Sampling
-
Specify multi-sampling as:
[rate]x
where rate is a valid sampling rate (e.g., 2, 4, 8, ...).
- EGL configuration number
- Specify as an integer. The integer must be a valid EGL configuration ID (EGL_CONFIG_ID).
For example, the following are all valid ways of specifying the EGL configuation option:
- -config=rgb565
- -config=rgba8888,4x
- -config=12
If no specific EGL configuration is provided, this utility uses the platform-specific EGL configuration. Use egl-configs to determine the the EGL configurations that are supported on your target.
- -display=display_id
-
Specify which display the window will appear on by using display_id.
You can specify display_id as one of the following:
- an integer that identifies the display
- an ID string that identifies the name of the display (id_string)
If you don't have any display subsections configured, or if you don't specify the display option, then gles2-maze uses the default display.
- -fg-alpha=foreground_alpha_value
-
Set the foreground to the specified alpha value as a float in the range [0.0f..1.0f]. If you don't specify the fg-alpha option, gles2-maze uses 1.0f.
- -frame-limit=frames
- Limit the number of frames rendered to the value specified by frame_limit (integer); after the frame limit is reached, gles2-maze exits. By default, this utility assumes an unlimited number of frames (-1).
- -interval=swap_interval
- Set the swap interval, as an integer (default is 1). The swap interval is the minimum number of vsync periods between image updates.
- -nbuffers=count
- Set the number of window buffers to be created for rendering. The default is 2.
- -pipeline=pipeline_id
-
Set the pipeline as specified by pipeline_id (integer).
If you don't specify this option, gles2-maze uses the pipeline of the framebuffer.
If you use this option, Screen applies the SCREEN_USAGE_OVERLAY usage flag and uses the pipeline specified by pipeline_id.
- -pos=x,y
- Sets the x,y coordinates of the viewport. The default coordinate of 0,0 is used if this option isn't specified.
- -size=widthxheight
- Set the size as specified, using integer values for width and height, of the viewport. The default size is fullscreen.
- -transparency=transparency_mode
-
Set the transparency mode of the window. Valid transparency modes are:
Transparency mode Description none Default mode; result is an opaque window test Destination pixels are replaced by source pixels; pixels may be opaque or fully transparent src Destination pixels are replaced by source pixels, including the alpha channel; window will be blended with contents underneath it - -verbose
- Print information to display.
- -zorder=zorder
- Set the z-order specified by zorder, as an integer, of the window. A z-order of 0 is used if this option isn't specified.
Description:
The gles2-maze binary is a command-line tool that can be used to confirm that screen is running, and that all necessary drivers for OpenGL ES 2.x are in place, and can start successfully.
To invoke gles2-maze:
- Ensure that screen is running.
- Run gles2-maze from either your startup script or from a shell.
Examples:
# gles2-maze
