PCI multiplexer

The PCI multiplexer (mux) provides a method for applications to access pci-server and allows single clients to access multiple pci-server instances in a hierarchy and partitioning case.

Design details

The PCI multiplexer introduces a multiplexing layer on top of the existing libpci.so. A central multiplexer handles the routing of all client communications and manages the life cycle of connectors. Only clients can communicate with the multiplexer. It then forwards the client requests to connectors. The multiplexer spawns and manages connectors, where each connector loads libpci.so and connects to one pci-server instance.

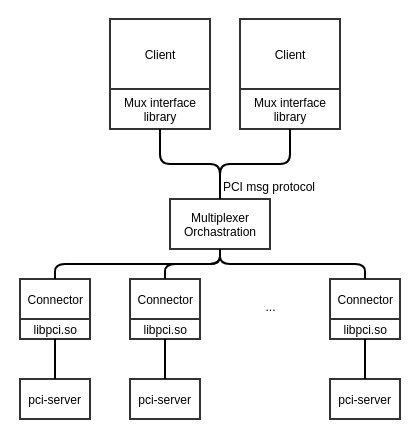

Figure 1PCI multiplexer architecture
Note:
  • There is a one-to-one relationship between pci_err_t values and those of pcimux_err_t.
  • The pcimux_bdf_t data type encodes routing information.

QVM support

When QVM uses the PCI multiplexer system, you must instruct the pci-server to load the pci_server-qvm_support.so module at startup. Refer to The pci_server-qvm_support.so module for instructions on how to do so.
