Making an OS Image

Making an OS image involves a number of steps, depending on the hardware and configuration of your target system.

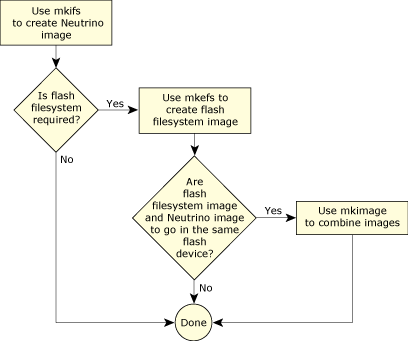

In this chapter, we'll take a look at the steps necessary to build an OS image. Then we'll examine the steps required to get that image to the target, whether it involves creating a boot disk/floppy, a network boot, or burning the image into an EPROM or flash device. We'll also discuss how to put together some sample systems to show you how to use the various drivers and resource managers that we supply.

For more information on using the various utilities described in this chapter, see the Utilities Reference.

Images, images, images

In the embedded Neutrino world, an image can mean any of the following:

Image type Description Created by:
OS image A bootable or nonbootable structure that contains files mkifs
Flash filesystem image A structure that can be used in a read-only, read/write, or read/write/reclaim flash filesystem mkefs
Embedded transaction filesystem image A binary image file containing the ETFS as a sequence of transactions mketfs

What is an OS image?

When you've created your executables (programs) that you want your embedded system to run, you need to place them somewhere where they can be loaded from. An OS image is simply a file that contains the OS, your executables, and any data files that might be related to your programs. Actually, you can think of the image as a small “filesystem” — it has a directory structure and some files in it.

An image can be bootable or nonbootable. A bootable image is one that contains the startup code that the IPL can transfer control to (see the chapter on customizing IPL programs in this book). Generally, a small embedded system will have only the one (bootable) OS image.

A nonbootable image is usually provided for systems where a separate, configuration-dependent setup may be required. Think of it as a second “filesystem” that has some additional files in it (we'll discuss this in more depth later). Since it's nonbootable, this image will typically not contain the OS, startup file, etc.

The OS image as a filesystem

As previously mentioned, the OS image can be thought of as a filesystem. In fact, the image contains a small directory structure that tells procnto the names and positions of the files contained within it; the image also contains the files themselves. When the embedded system is running, the image can be accessed just like any other read-only filesystem:

# cd /proc/boot
# ls
.script     ping        cat       data1        pidin
ksh         ls          ftp       procnto      devc-ser8250-abc123
# cat data1
This is a data file, called data1, contained in the image.
Note that this is a convenient way of associating data
files with your programs.

The above example actually demonstrates two aspects of having the OS image function as a filesystem. When we issued the ls command, the OS loaded ls from the image filesystem (pathname /proc/boot/ls). Then, when we issued the cat command, the OS loaded cat from the image filesystem as well, and opened the file data1.

Let's now take a look at how we configure the image to contain files.

Configuring an OS image

The OS image is created by a program called mkifs (make image filesystem), which accepts information from two main sources: its command line and a buildfile.

Note: For more information, see mkifs in the Utilities Reference.

A simple buildfile

Let's look at a very simple buildfile, the one that generated the OS image used in the example above:

#   A simple "ls", "ping", and shell.
#   This file is "shell.bld"

[virtual=armle,srec] .bootstrap = {
    PATH=/proc/boot procnto -vv
[+script] .script = {
    procmgr_symlink ../../proc/boot/ /usr/lib/

    devc-ser8250-abc123 -F -e -c14745600  -b115200 0xc8000000 ^2,15 &
    display_msg Serial Driver Started

[type=link] /dev/console=/dev/ser1
[type=link] /tmp=/dev/shmem


Note: In a buildfile, a pound sign (#) indicates a comment; anything between it and the end of the line is ignored. Make sure there's a space between a buildfile command and the pound sign.

This buildfile consists of these sections:

Inline files

Although the three sections in the buildfile above seem to be distinct, in reality all three are similar in that they're lists of files.

Notice also how the buildfile itself is structured:

optional_attributes filename optional_contents

For example, the line:

[virtual=armle,srec] .bootstrap = {

has an attribute of [virtual=armle,srec] and a filename of .bootstrap. The optional_contents part of the line is what we call an inline file; instead of getting the contents of this file from the host machine, mkifs gets them from the buildfile itself, enclosed by braces. The contents of the inline file can't be on the same line as the opening or closing brace.

Let's examine these elements in some detail.

The bootstrap file

The first section of the bootfile (starting with [virtual=armle,srec]) specifies that a virtual address system is being built. The CPU type appears next; armle indicates a little-endian ARM processor. Then after the comma comes the name of the bootfile (srec).

The rest of the line specifies an inline file (as indicated by the open brace) named .bootstrap, which consists of the following:

PATH=/proc/boot procnto -vv

Note: If you set the value of PATH in the bootstrap file, procnto sets the _CS_PATH configuration string. Similarily, if you set LD_LIBRARY_PATH, procnto sets the _CS_LIBPATH configuration string. It doesn't pass these environment variables on to the script, but you can set environment variables in the script itself.

You can bind in optional modules to procnto by using the [module=...] attribute. For example, to bind in the adaptive partitioning scheduler, change the procnto line to this:

[module=aps] PATH=/proc/boot procnto -vv

  • Optional modules to procnto were introduced in the QNX Neutrino Core OS 6.3.2.
  • For more information about the adaptive partitioning scheduler, see the Adaptive Partitioning User's Guide.

The actual name of the bootstrap file is irrelevant. However, nowhere else in the buildfile did we specify the bootstrap or script files — they're included automatically when specified by a [virtual] or [physical] attribute.

The virtual attribute (and its sibling the physical attribute) specifies the target processor (in our example, the armle part) and the bootfile (the srec part), a very small amount of code between the IPL and startup programs. The target processor is put into the environment variable $PROCESSOR and is used during pathname expansion. You can omit the target processor specification, in which case it defaults to the same as the host processor. For example:

[virtual=bios] .bootstrap = {

would assume an ARM target if you're on an ARM host system.

Both examples find a file called $PROCESSOR/sys/bios.boot (the .boot part is added automatically by mkifs), and process it for configuration information.

Compressing the image

While we're looking at the bootstrap specification, it's worth mentioning that you can apply the +compress attribute to compress the entire image. The image is automatically uncompressed before being started. Here's what the first line would look like:

[virtual=armle,srec +compress] .bootstrap = {

The script file

The second section of the buildfile starts with the [+script] attribute — this tells mkifs that the specified file is a script file, a sequence of commands that you want procnto to execute when it's completed its own startup.

Note: Script files look just like regular shell scripts, except that:
  • special modifiers can be placed before the actual commands to run
  • some commands are builtin
  • the script file's contents are parsed by mkifs before being placed into the image

In order to run a command, its executable must be available when the script is executed. You can add the executable to the image or get it from a filesystem that's started before the executable is required. The latter approach results in a smaller image.

In this case, the script file is an inline file (again indicated by the open brace). The file (which happens to be called .script) contains the following:

procmgr_symlink ../../proc/boot/ /usr/lib/

devc-ser8250-abc123 -F -e -c14745600  -b115200 0xc8000000 ^2,15 &
display_msg Serial Driver Started

This script file begins by creating a symbolic link to ../../proc/boot/ called /usr/lib/

Note: For MIPS targets, you need to name this link instead of

Next the script starts a serial driver (the fictional devc-ser8250-abc123) in edited mode with hardware flow control disabled at a baud rate of 115200 bps at a particular physical memory address. The script then does a reopen to redirect standard input, output, and error. The last line simply displays a message.

As mentioned above, the bootstrap file can set the _CS_PATH and _CS_LIBPATH configuration strings. You can set PATH, LD_LIBRARY_PATH, and other environment variables if the programs in your script need them.

Note: Startup scripts support foreground and background processes. Just as in the shell, specify an ampersand (&) on the command line to make the program run in the background. If you run a program in the foreground, and it doesn't exit, then the rest of the script is never executed, and the system might not become fully operational.

Bound multiprocessing attributes

You can specify which CPU to bind processes to when launching processes from the startup script through the [CPU=] modifier.

The [CPU=] is used as any other modifier, and specifies the CPU on which to launch the following process (or, if the attribute is used alone on a line without a command, sets the default CPU for all following processes). Specify the CPU as a zero-based processor number:

[cpu=0] my_program

A value of * allows the processes to run on all processors:

[cpu=*] my_program

At boot time, if there isn't a processor with the given index, a warning message is displayed, and the command is launched without any runmask restriction.

Note: Due to a limitation in the boot image records, this syntax allows only the specification of a single CPU and not a more generic runmask. Use the on utility to spawn a process within a fully specified runmask.

The script file on the target

The script file stored on the target isn't the same as the original specification of the script file within the buildfile. That's because a script file is “special”mkifs parses the text commands in the script file and stores only the parsed output on the target, not the original ASCII text. The reason we did this was to minimize the work that the process manager has to do at runtime when it starts up and processes the script file — we didn't want to have to include a complete shell interpreter within the process manager!

Plain ordinary lists of files

Let's return to our example. Notice the “list of files” (i.e. from [type=link] /dev/console=/dev/ser1 to pidin).

As mentioned earlier, this list specifies the files and libraries that you want to include in the image. What you include in the image depends on what you want your embedded system to do; for some tips on choosing these files, see the Sample Buildfiles appendix.

Including files from different places

In the example above, we specified that the files at the end were to be part of the image, and mkifs somehow magically found them. Actually, it's not magic — mkifs simply looked for the environment variable MKIFS_PATH. This environment variable contains a list of places to look for the files specified in the buildfile. If the environment variable doesn't exist, then the following are searched in this order:

  1. current working directory if the filename contains a slash (but doesn't start with one).
  2. ${QNX_TARGET}/${PROCESSOR}/sbin
  3. ${QNX_TARGET}/${PROCESSOR}/usr/sbin
  4. ${QNX_TARGET}/${PROCESSOR}/boot/sys
  6. ${QNX_TARGET}/${PROCESSOR}/usr/bin
  8. ${QNX_TARGET}/${PROCESSOR}/lib/dll
  9. ${QNX_TARGET}/${PROCESSOR}/usr/lib
  10. ${QNX_TARGET}/${PROCESSOR}/usr/photon/bin

(The ${PROCESSOR} component is replaced with the name of the CPU, e.g. arm.)

Since none of the filenames that we used in our example starts with the / character, we're telling mkifs that it should search for files (on the host) within the path list specified by the MKIFS_PATH environment variable as described above. Regardless of where the files came from on the host, in our example they'll all be placed on the target under the /proc/boot directory (there are a few subtleties with this, which we'll come back to).

For our example, devc-con will appear on the target as the file /proc/boot/devc-con, even though it may have come from the host as ${QNX_TARGET}/armle/sbin/devc-con.

To include files from locations other than those specified in the MKIFS_PATH environment variable, you have a number of options:

Modifying the search path

By specifying the [search=newpath] attribute, we can cause mkifs to look in places other than what the environment variable MKIFS_PATH specifies. The newpath component is a colon-separated list of pathnames and can include environment variable expansion. For example, to augment the existing MKIFS_PATH pathname to also include the directory /mystuff, you would specify:


Specifying the pathname explicitly

Let's assume that one of the files used in the example is actually stored on your development system as /release/data1. If you simply put /release/data1 in the buildfile, mkifs would include the file in the image, but would call it /proc/boot/data1 on the target system, instead of /release/data1.

Sometimes this is exactly what you want. But at other times you may want to specify the exact pathname on the target (i.e. you may wish to override the prefix of /proc/boot). For example, specifying /etc/passwd would place the host filesystem's /etc/passwd file in the target's pathname space as /proc/boot/passwd — most likely not what you intended. To get around this, you could specify:

/etc/passwd = /etc/passwd

This tells mkifs that the file /etc/passwd on the host should be stored as /etc/passwd on the target.

On the other hand, you may in fact want a different source file (let's say /home/joe/embedded/passwd) to be the password file for the embedded system. In that case, you would specify:

/etc/passwd = /home/joe/embedded/passwd

Creating the contents of the file in line

For our tiny data1 file, we could just as easily have included it in line — that is to say, we could have specified its contents directly in the buildfile itself, without the need to have a real data1 file reside somewhere on the host's filesystem. To include the contents in line, we would have specified:

data1 = {
This is a data file, called data1, contained in the image.
Note that this is a convenient way of associating data
files with your programs.

A few notes. If your inline file contains the closing brace (“}”), then you must escape that closing brace with a backslash (\). This also means that all backslashes must be escaped as well. To have an inline file that contains the following:

This includes a {, a }, and a \ character.

you would have to specify this file (let's call it data2) as follows:

data2 = {
This includes a {, a \}, and a \\ character.

Note that since we didn't want the data2 file to contain leading spaces, we didn't supply any in the inline definition. The following, while perhaps “better looking,” would be incorrect:

# This is wrong, because it includes leading spaces!
data2 = {
    This includes a {, a \}, and a \\ character.

If the filename that you're specifying has “weird” characters in it, then you must quote the name with double quote characters ("). For example, to create a file called I "think" so (note the spaces and quotation marks), you would have to specify it as follows:

"I \"think\" so" = ...

But naming files like this is discouraged, since the filenames are somewhat awkward to type from a command line (not to mention that they look goofy).

Specifying file ownership and permissions

The files that we included (in the example above) had the owner, group ID, and permissions fields set to whatever they were set to on the host filesystem they came from. The inline files (data1 and data2) got the user ID and group ID fields from the user who ran the mkifs program. The permissions are set according to the user's umask.

If we wanted to explicitly set these fields on particular files within the buildfile, we would prefix the filenames with an attribute:

[uid=0 gid=0 perms=0666] file1
[uid=5 gid=1 perms=a+xr] file2

This marks the first file (file1) as being owned by root (the user ID 0), group zero, and readable and writable by all (the mode of octal 666). The second file (file2) is marked as being owned by user ID 5, group ID 1, and executable and readable by all (the a+xr permissions).

Note: When running on a Windows host, mkifs can't get the execute (x), setuid (“set user ID”), or setgid (“set group ID”) permissions from the file. Use the perms attribute to specify these permissions explicitly. You might also have to use the uid and gid attributes to set the ownership correctly. To determine whether or not a utility needs to have the setuid or setgid permission set, see its entry in the Utilities Reference.

Notice how when we combine attributes, we place all of the attributes within one open-square/close-square set. The following is incorrect:

# Wrong way to do it!
[uid=0] [gid=0] [perms=0666] file1

If we wanted to set these fields for a bunch of files, the easiest way to do that would be to specify the uid, gid, and perms attributes on a single line, followed by the list of files:

[uid=5 gid=1 perms=0666]

which is equivalent to:

[uid=5 gid=1 perms=0666] file1
[uid=5 gid=1 perms=0666] file2
[uid=5 gid=1 perms=0666] file3
[uid=5 gid=1 perms=0666] file4

Including a whole whack of files

If we wanted to include a large number of files, perhaps from a preconfigured directory, we would simply specify the name of the directory instead of the individual filenames. For example, if we had a directory called /release_1.0, and we wanted all the files under that directory to be included in the image, our buildfile would have the line:


This would put all the files that reside under /release_1.0 into /proc/boot on the target. If there were subdirectories under /release_1.0, then they too would be created under /proc/boot, and all the files in those subdirectories would also be included in the target.

Again, this may or may not be what you intend. If you really want the /release_1.0 files to be placed under /, you would specify:


This tells mkifs that it should grab everything from the /release_1.0 directory and put it into a directory called /. As another example, if we wanted everything in the host's /release_1.0 directory to live under /product on the target, we would specify:


Generating the image

To generate the image file from our sample buildfile, you could execute the command:

mkifs shell.bld shell.ifs

This tells mkifs to use the buildfile shell.bld to create the image file shell.ifs.

You can also specify command-line options to mkifs. Since these command-line options are interpreted before the actual buildfile, you can add lines before the buildfile. You would do this if you wanted to use a makefile to change the defaults of a generic buildfile.

The following sample changes the address at which the image starts to 64 KB (hex 0x10000):

mkifs -l "[image=0x10000]" buildfile image

For more information, see mkifs in the Utilities Reference.

Listing the contents of an image

If you'd like to see the contents of an image, you can use the dumpifs utility. The output from dumpifs might look something like this:

   Offset     Size  Name
        0      100  Startup-header flags1=0x1 flags2=0 paddr_bias=0x80000000
      100     a008  startup.*
     a108       5c  Image-header mountpoint=/
     a164      264  Image-directory
     ----     ----  Root-dirent
     ----       12  usr/lib/ -> /proc/boot/
     ----        9  dev/console -> /dev/ser1
     a3c8       80  proc/boot/.script
     b000    4a000  proc/boot/procnto
    55000    59000  proc/boot/
     ----        9  proc/boot/ ->
    ae000     7340  proc/boot/devc-ser8250
    b6000     4050  proc/boot/esh
    bb000     4a80  proc/boot/ls
    c0000    14fe0  proc/boot/data1
    d5000     22a0  proc/boot/data2
Checksums: image=0x94b0d37b startup=0xa3aeaf2

The more -v (“verbose”) options you specify to dumpifs, the more data you'll see.

For more information on dumpifs, see its entry in the Utilities Reference.

Building a flash filesystem image

If your application requires a writable filesystem and you have flash memory devices in your embedded system, then you can use a Neutrino flash filesystem driver to provide a POSIX-compatible filesystem. The flash filesystem drivers are described in the Filesystems chapter of the System Architecture guide. The chapter on customizing the flash filesystem in this book describes how you can build a flash filesystem driver for your embedded system.

You have two options when creating a flash filesystem:

In this section we describe how to create a flash filesystem image file using the mkefs (for make embedded filesystem) utility and a buildfile. How to transfer the flash filesystem image onto your target system is described in the “Embedding an image” section. For details on how to use the flash filesystem drivers, see the Utilities Reference.

Using mkefs

The mkefs utility takes a buildfile and produces a flash filesystem image file. The buildfile is a list of attributes and files to include in the filesystem.

mkefs buildfile

The syntax of the buildfile is similar to that for mkifs, but mkefs supports a different set of attributes, including the following:

Specifies the block size of the flash device being used; defaults to 64 KB. We'll talk about interleave considerations for flash devices below.
Specifies the maximum size of the flash device; is used to check for overflows. The default is 4 Gbytes.
Specifies the number of spare blocks to set aside for the flash filesystem; see Spare blocks,” below.
Specifies the minimum size of the filesystem. If the resultant image is smaller than tsize, the image is padded out to tsize bytes. The default is unspecified, meaning that the image won't be padded.

Refer to the Utilities Reference for a complete description of the buildfile syntax and attributes supported by mkefs.

Here's a very simple example of a buildfile:

[block_size=128k spare_blocks=1 filter=deflate]

In this example, the attributes specify that the flash devices have a block size of 128 KB, that there should be one spare block, and that all the files should be processed using the deflate utility, which compresses the files. A single directory is given. Just as with mkifs, when we specify a directory, all files and subdirectories beneath it are included in the resulting image. Most of the other filename tricks shown above for mkifs also apply to mkefs.

Block size

The value you should specify for the block_size attribute depends on the physical block size of the flash device given in the manufacturer's data sheet and on how the flash device is configured in your hardware (specifically the interleave).

Here are some examples:

If you have: Set block_size to:
An 8-bit flash interface and are using an 8-bit device with a 64 KB block size 64 KB
A 16-bit flash interface and are using two interleaved 8-bit flash devices with a 64 KB block size 128 KB
A 16-bit flash interface and are using a 16-bit flash device with a 64 KB block size 64 KB
A 32-bit flash interface and are using four interleaved 8-bit flash devices with a 64 KB block size 256 KB

Notice that you don't have to specify any details (other than the block size) about the actual flash devices used in your system.

Spare blocks

The spare_blocks attribute indicates how many blocks should be left as spare. A value of 0 implies a “read/write” (or “write-once”) flash filesystem, whereas a value greater than 0 implies a “read/write/reclaim” filesystem.

The default is 1, but the number of spare blocks you'll need depends on the amount of writing you'll do. You should specify an odd number of spare blocks, usually 1 or 3.

The filesystem doesn't use a spare block until it's time to perform a reclaim operation. A nonspare block is then selected for “reclamation”, and the data contained in that block is coalesced into one contiguous region in the spare block. The nonspare block is then erased and becomes the new spare block. The former spare block takes the place of the reclaimed block.

Note: If you don't set aside at least one spare block (i.e. the spare_blocks attribute is 0), then the flash filesystem driver won't be able to reclaim space — it won't have any place to put the new copy of the data. The filesystem will eventually fill up since there's no way to reclaim space.

Compressing files

The file compression mechanism provided with our flash filesystem is a convenient way to cut flash memory costs for customers. The flash filesystem uses popular deflate/inflate algorithms for fast and efficient compression/decompression.

You can use the deflate utility to compress files in the flash filesystem, either from a shell or as the filter attribute to mkefs. The deflate algorithm provides excellent lossless compression of data and executable files.

The flash filesystem drivers use the inflator utility to transparently decompress files that have been compressed with deflate, which means that you can access compressed files in the flash filesystem without having to decompress them first.

Note: Compressing files can result in significant space savings. But there's a trade-off: it takes longer to access compressed files. Always consider the slowdown of compressed data access and increased CPU usage when designing a system. We've seen systems with restricted flash budget increase their boot time by large factors when using compression.

You can compress files:

The first method is the high-runner case. You can use the deflate utility as a filter for mkefs to compress the files that get built into the flash filesystem. For example, you could use this buildfile to create a 16-megabyte filesystem with compression:

[block_size=128K spare_blocks=1 min_size=16m filter=deflate]

You can also precompress the files by using deflate directly. If mkefs detects a compression signature in a file that it's putting into the filesystem, it knows that the file is precompressed, and so it doesn't compress the file again. In either case, mkefs puts the data on the flash filesystem and sets a simple bit in the metadata that tells the flash filesystem that the file needs to be decompressed.

The second method is to use deflate to compress files and store them directly in the flash filesystem. For example, here's how to use deflate at the command line to compress the ls file from the image filesystem into a flash filesystem:

$ deflate /proc/boot/ls -o /fs0p0/ls

Abstraction layer

The flash filesystem never compresses any files. It detects compressed files on the media and uses inflator to decompress them as they're accessed. An abstraction layer in inflator achieves efficiency and preserves POSIX compliance. Special compressed data headers on top of the flash files provide fast seek times.

This layering is quite straightforward. Specific I/O functions include handling the three basic access calls for compressed files:

Two sizes

This is where compression gets tricky. A compressed file has two sizes:

Virtual size
This is, for the end user, the real size of the decompressed data, such as stat() would report.
Media size
The size that the file actually occupies on the media.

For instance, running the disk usage utility du would be practically meaningless under a flash directory with data that is decompressed on the fly. It wouldn't reflect flash media usage at all.

As a convenience, inflator supports a naming convention that lets you access the compressed file: simply add .~~~ (a period and three tildes) to the file name. If you use this extension, the file isn't decompressed, so read operations yield raw compressed data instead of the decompressed data. For example, to get the virtual size of a compressed file, type:

ls -l my_file

but to get the media size, type:

ls -l my_file.~~~

Compression rules

If you read a file with the .~~~ extension, the file isn't decompressed for you, as it would be normally. Now this is where we start talking about rules. All this reading and getting the size of files is fairly simple; things get ugly when it's time to write those files.

The exception

So those are the rules, and here is the exception: truncation. If a compressed file is opened with O_TRUNC from the regular virtual namespace, the file status will become just as if it were created from this namespace. This gives you full POSIX capabilities and no compression with accompanying restrictions.

By the way, the ftruncate() functionality isn't provided with compressed files, but is supported with regular files.

Embedding an image

After you've created your bootable OS image on the host system, you'll want to transfer it to the target system so that you can boot Neutrino on the target. The various ways of booting the OS on a target system are described in the chapter on customizing IPL programs in this guide.

If you're booting the OS from flash, then you'll want to write the image into the flash devices on the target. The same applies if you have a flash filesystem image — you'll want to write the image into flash on the target.

Figure showing config options for embedded systems

Flash configuration options for your Neutrino-based embedded systems.

Depending on your requirements and the configuration of your target system, you may want to embed:

Also, you may wish to write the boot image and the flash filesystem on the same flash device or different devices. If you want to write the boot image and the flash filesystem on the same device, then you can use the mkimage utility to combine the image files into a single image file.

During the initial development stages, you'll probably need to write the image into flash using a programmer or a download utility. Later on if you have a flash filesystem running on your target, you can then write the image file into a raw flash partition.

If your programmer requires the image file to be in some format other than binary, then you can use the mkrec utility to convert the image file format.

Combining image files using mkimage

The mkimage utility combines multiple input image files into a single output image file. It recognizes which of the image files contains the boot image and will place this image at the start. Note that instead of using mkimage, some developers rely on a flash programmer to burn the separate images with appropriate alignment.

For example:

mkimage nto.ifs fs.ifs > flash.ifs

will take the nto.ifs and fs.ifs image files and output them to the flash.ifs file.

If you want more control over how the image files are combined, you can use other utilities, such as:

Combining image files using the IDE

You'll use the System Builder to generate OS images for your target board's RAM or flash. You can create:

For more information about this process, please see the documentation that comes with the QNX Momentics IDE.

Converting images using mkrec

The mkrec utility takes a binary image file and converts it to either Motorola S records or Intel hex records, suitable for a flash or EPROM programmer.

For example:

mkrec -s 256k flash.ifs > flash.srec

will convert the image file flash.ifs to an S-record format file called flash.srec. The -s 256k option specifies that the EPROM device is 256 KB in size.

If you have multiple image files that you wish to download, then you can first use mkimage to combine the image files into a single file before downloading. Or, your flash/EPROM programmer may allow you to download multiple image files at different offsets.

Transferring an image to flash

There are many ways to transfer your image into your flash:

The details on how to transfer the image with anything other than the last method is beyond the scope of this document. Using the raw mountpoint is a convenient way that comes bundled with your flash filesystem library. You can actually read and write raw partitions just like regular files, except that when the raw mountpoint is involved, remember to:

For the sake of this discussion, we can use the devf-ram driver. This driver simulates flash using regular memory. To start it, log in as root and type:

# devf-ram &

You can use the flashctl command to erase a partition. You don't need to be root to do this. For instance:

$ flashctl -p /dev/fs0 -e

Caution: Be careful when you use this command. Make sure you aren't erasing something important on your flash — like your BIOS!

On normal flash, the flashctl command on a raw partition should take a while (about one second for each erase block). This command erases the /dev/fs0 raw flash array. Try the hd command on this newly erased flash array; everything should be 0xFF:

$ hd /dev/fs0
0000000: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ................

Note: For more information on flashctl, see the Utilities Reference.

Let's make a dummy IPL for the purpose of this example:

$ echo Hello, World! > ipl
$ mkrec -s 128k -f full ipl > ipl_image
Reset jmps to 0x1FFE0 (jmp 0xFFED)
ROM offset is 0x1FFE0

Of course, this IPL won't work for real — it's just for trying out the flash filesystem. In any event, an IPL wouldn't be very useful in RAM. Let's make a dummy flash filesystem for the purpose of this example (the ^D means Ctrl-D):

$ mkefs -v - flash_image
[block_size=128k spare_blocks=1 min_size=384k]
writing directory entry ->
writing file entry      -> ls **
writing file entry      -> cat *
Filesystem size = 384K
block size = 128K
1 spare block(s)

This flash filesystem actually works (unlike the IPL). Now, the flash partition images can be transferred to the flash using any file-transfer utility (such as cp or ftp). We have an IPL image created with mkrec (and properly padded to an erase block boundary) and a flash image created with mkefs, so we can use cat to combine and transfer both images to the flash:

$ cat ipl_image flash_image > /dev/fs0

If you use the hd utility on the raw mountpoint again, you'll see that your flash that had initially all bits set to ones (0xFF) now contains your partition images. To use the flash filesystem partition, you need to slay the driver and start it again so it can recognize the partitions and mount them. For instance, with devf-ram:

$ slay devf-ram
$ devf-ram &

From this point, you have a /fs0p1 mountpoint that's in fact a directory and contains the files you specified with mkefs to create your flash image. There's no /fs0p0, because the boot image isn't recognized by the flash filesystem. It's still accessible as a raw mountpoint via /dev/fs0p0. You can do the same operations on /dev/fs0p0 that you could do with /dev/fs0. Even /dev/fs0p1 is accessible, but be careful not to write to this partition while applications are using the flash filesystem at /fs0p1. Try:

$ /fs0p1/ls /fs0p1

You've just executed ls from your flash filesystem and you've listed its contents. To conclude, let's say that what we did in this example is a good starting point for when you customize the flash filesystem to your own platforms. These baby steps should be the first steps to using a full-blown filesystem on your target.

System configuration

In this section, we'll look at some of the ways you can configure Neutrino systems. Please refer to the Sample Buildfiles appendix in this guide for more detailed examples.

What you want to do will, of course, depend on the type of system you're building. Our purpose in this section is to offer some general guidelines and to help clarify which executables should be used in which circumstances, as well as which shared libraries are required for their respective executables.

The general procedure to set up a system is as follows:

  1. Establish an output device.
  2. Run drivers.
  3. Run applications.

Establishing an output device

One of the very first things to do in a buildfile is to start a driver that you then redirect standard input, output, and error to. This allows all subsequent drivers and applications to output their startup messages and any diagnostics messages they may emit to a known place where you can examine the output.

Generally, you'd start either the console driver or a serial port driver. The console driver is used when you're developing on a fairly complete “desktop” type of environment; the serial driver is suitable for most “embedded” environments.

But you may not even have any such devices in your deeply embedded system, in which case you would omit this step. Or you may have other types of devices that you can use as your output device, in which case you may require a specialized driver (that you supply). If you don't specify a driver, output will go to the debug output driver provided by the startup code.

A simple desktop example

This example starts the standard console driver in edited mode (the -e option, which is the default). To set up the output device, you would include the driver in your startup script (the [+script] file). For example:

devc-con -e &
reopen /dev/con1

The following starts the 8250 serial port driver in edited mode (the -e option), with an initial baud rate of 115200 baud (the -b option):

devc-ser8250 -e -b115200 &
reopen /dev/ser1

In both cases, the reopen command causes standard input, output, and error to be redirected to the specified pathname (either /dev/con1 or /dev/ser1 in the above examples). This redirection holds until otherwise specified with another reopen command.

Note: The reopen used above is a mkifs internal command, not the shell builtin command of the same name.

Running drivers/filesystems

The next thing you'll want to run are the drivers and/or filesystems that will give you access to the hardware. Note that the console or serial port that we installed in the previous section is actually an example of such a driver, but it was a special case in that it should generally be the first one.

We support several types of drivers/filesystems, including:

Which one you install first is generally driven by where your executables reside. One of the goals for the image is to keep it small. This means that you generally don't put all the executables and shared libraries you plan to load directly into the image — instead, you place those files into some other medium (whether a flash filesystem, rotating disk, or a network filesystem). In that case, you should start the appropriate driver to get access to your executables. Once you have access to your executables on some medium, you would then start other drivers from that medium.

The alternative, which is often found in deeply embedded systems, is to put all the executables and shared libraries directly into the image. You might want to do this if there's no secondary storage medium or if you wanted to have everything available immediately, without the need to start a driver.

Let's examine the steps required to start the disk, flash, and network drivers. All these drivers share a common feature: they rely on one process that loads one or more .so files, with the particular .so files selected either via the command line of the process or via automatic configuration detection.

Note: Since the various drivers we're discussing here use .so files (not just their own driver-specific ones, but also standard ones like the C library), these .so files must be present before the driver starts. Obviously, this means that the .so file cannot be on the same medium as the one you're trying to start the driver for! We recommend that you put these .so files into the image filesystem.

Disk drivers

The first thing you need to determine is which hardware you have controlling the disk interface. We support a number of interfaces, including various flavors of SCSI controllers and the EIDE controller. For details on the supported interface controllers, see the various devb-* entries in the Utilities Reference.

The only action required in your buildfile is to start the driver (e.g. devb-aha7). The driver will then dynamically load the appropriate modules (in this order):

  1. — Common Access Method library
  2. cam-*.so — Common Access Method module(s)
  3. — block I/O module
  4. fs-*.so — filesystem personality module(s)

The CAM .so files are documented under cam-* in the Utilities Reference. Currently, we support CD-ROMs (, hard disks (, and optical disks (

The module is responsible for dealing with a disk on a block-by-block basis. It includes caching support.

The fs-* modules are responsible for providing the high-level knowledge about how a particular filesystem is structured. We currently support the following:

Filesystem Module
Macintosh HFS and HFS Plus
Windows NT
ISO-9660 CD-ROM, Universal Disk Format (UDF)

Flash filesystems

To run a flash filesystem, you need to select the appropriate flash driver for your target system. For details on the supported flash drivers, see the various devf-* entries in the Utilities Reference.

Note: The devf-generic flash driver that can be thought of as a universal driver whose capabilities make it accessible to most flash devices.

The flash filesystem drivers don't rely on any flash-specific .so files, so the only module required is the standard C library (

Since the flash filesystem drivers are written for specific target systems, you can usually start them without command-line options; they'll find the flash for the specific system they were written for.

Network drivers

Network services are started from the io-pkt* command, which is responsible for loading in the required .so files.

Note: For dynamic control of network drivers, you can simply use mount and umount to start and stop drivers at the command line. For example:
mount -T io-pkt

For more information, see mount in the Utilities Reference.

Two levels of .so files are started, based on the command-line options given to io-pkt*:

The -d option lets you choose the hardware driver that knows how to talk to a particular card. For example, choosing -d ne2000 will cause io-pkt* to load to access an NE-2000-compatible network card. You may specify additional command-line options after the -d, such as the interrupt vector to be used by the card.

The -p option lets you choose the protocol driver that deals with a particular protocol. As with the -d option, you would specify command-line options after the -p for the driver, such as the IP address for a particular interface.

For more information about network services, see the devn-*, and io-pkt entries in the Utilities Reference.

Network filesystems

We support two types of network filesystems:

Although NFS is primarily a UNIX-based filesystem, you may find some versions of NFS available for Windows.

Running applications

There's nothing special required to run your applications. Generally, they'll be placed in the script file after all the other drivers have started. If you require a particular driver to be present and “ready,” you would typically use the waitfor command in the script.

Here's an example. An application called peelmaster needs to wait for a driver (let's call it driver-spud) to be ready before it should start. The following sequence is typical:

driver-spud &
waitfor /dev/spud

This causes the driver (driver-spud) to be run in the background (specified by the ampersand character). The expectation is that when the driver is ready, it will register the pathname /dev/spud. The waitfor command tries to stat() the pathname /dev/spud periodically, blocking execution of the script until the pathname appears or a predetermined timeout has occurred. Once the pathname appears in the pathname space, we assume that the driver is ready to accept requests. At that point, the waitfor will unblock, and the next program in the list (in our case, peelmaster) will execute.

Without the waitfor command, the peelmaster program would run immediately after the driver was started, which could cause peelmaster to miss the /dev/spud pathname and fail.

Debugging an embedded system

When you're developing embedded systems under some operating systems, you often need to use a hardware debugger, a physical device that connects to target hardware via a JTAG (Joint Test Action Group) interface. This is necessary for development of drivers, and possibly user applications, because they're linked into the same memory space as the kernel. If a driver or application crashes, the kernel and system may crash as a result. This makes using software debuggers difficult, because they depend on a running system.

Debugging target systems with Neutrino is different because its architecture is significantly different from other embeddable realtime operating systems:

Under Neutrino, you typically use:

In other words, you rarely have to use a JTAG hardware debugger, especially if you're using one of our board support packages.

pdebug software debugging agent

We provide a software debugging agent called pdebug that makes it easier for you to debug system drivers and user applications. The pdebug agent runs on the target system and communicates with the host debugger over a serial or Ethernet connection.

For more information, see The process-level debug agent in the Compiling and Debugging chapter of the Programmer's Guide.

Hardware debuggers and Neutrino

The major constraint of using pdebug is that the kernel must already be running on the target. In other words, you can't use pdebug until the IPL and startup have successfully started the kernel.

However, the IPL and startup program run with the CPU in physical mode, so you can use conventional hardware debuggers to debug them. This is the primary function of the JTAG debugger throughout the Neutrino software development phase. You use the hardware debugger to debug the BSP (IPL and startup), and pdebug to debug drivers and applications once the kernel is running. You can also use a hardware debugger to examine registers and view memory while the kernel and applications are running, if you know the physical addresses.

If hardware debuggers, such as SH or AMC have builtin Neutrino awareness, you can use a JTAG to debug applications. These debuggers can interpret kernel information as well as perform the necessary translation between virtual and physical memory addresses to view application data.

Producing debug symbol information for IPL and startup

You can use hardware debuggers to debug Neutrino IPL and startup programs without any extra information. However, in this case, you're limited to assembly-level debugging, and assembler symbols such as subroutine names aren't visible. To perform full source-level debugging, you need to provide the hardware debugger with the symbol information and C source code.

This section describes the steps necessary to generate the symbol and debug information required by a hardware debugger for source-level debugging. The steps described are based on the PPC (PowerPC) Board Support Package available for Neutrino 6.3.0 for both IPL and startup of the Motorola Sandpoint MPC750 hardware reference platform.

The examples below are described for a Neutrino 6.3 self-hosted environment, and assume that you're logged in on the development host with root privileges.

Generating IPL debug symbols

To generate symbol information for the IPL, you must recompile both the IPL library and the Sandpoint IPL with debug information. The general procedure is as follows:

  1. Modify the IPL source.
  2. Build the IPL library and Sandpoint IPL.
  3. Burn the IPL into the flash memory of the Sandpoint board using a flash burner or JTAG.
  4. Modify the sandpoint.lnk file to output ELF format.
  5. Recompile the IPL library and Sandpoint IPL source with debug options.
  6. Load the Sandpoint IPL ELF file containing debug information into the hardware debugger.

Note: Be sure to synchronize the source code, the IPL burned into flash, and the IPL debug symbols.

To build the IPL library with debug information:

# cd bsp_working_dir/src/hardware/ipl/lib/ppc/
# make clean
# make CCOPTS=-g
# cp libipl.a bsp_working_dir/sandpoint/install/ppcbe/lib
# make install

The above steps recompile the PowerPC IPL library (libipl.a) with DWARF debug information and copy this library to the Sandpoint install directory. The Sandpoint BSP is configured to look for this library first in its install directory. The make install is optional, and copies libipl.a to /ppcbe/usr/lib.

The Sandpoint BSP has been set up to work with SREC format files. However, to generate debug and symbol information to be loaded into the hardware debugger, you must generate ELF-format files.

Modify the sandpoint.lnk file to output ELF format:

# cd bsp_working_dir/sandpoint/src/hardware/ipl/boards/sandpoint

Edit the file sandpoint.lnk, changing the first lines from:




You can now rebuild the Sandpoint IPL to produce symbol and debug information in ELF format. To build the Sandpoint IPL with debug information:

# cd bsp_working_dir/sandpoint/src/hardware/ipl/boards/sandpoint/ppc/be
# make clean
# make CCOPTS=-g

The ipl-sandpoint file is now in ELF format with debug symbols from both the IPL library and Sandpoint IPL.

Note: To rebuild the BSP, you need to change the sandpoint.lnk file back to outputting SREC format. It's also important to keep the IPL that's burned into the Sandpoint flash memory in sync with the generated debug information; if you modify the IPL source, you need to rebuild the BSP, burn the new IPL into flash, and rebuild the IPL symbol and debug information.

You can use the objdump utility to view the ELF information. For example, to view the symbol information contained in the ipl-sandpoint file:

# objdump -t ipl-sandpoint | less

You can now import the ipl-sandpoint file into a hardware debugger to provide the symbol information required for debugging. In addition, the hardware debugger needs the source code listings found in the following directories:

Generating startup debug symbols

To generate symbol information for startup, you must recompile both the startup library and the Sandpoint startup with debug information. The general procedure is as follows:

  1. Modify the startup source.
  2. Build the startup library and Sandpoint startup with debug information.
  3. Rebuild the image and symbol file.
  4. Load the symbol file into the hardware debugger program.
  5. Transfer the image to the Sandpoint target (burn into flash, transfer over a serial connection).

To build the startup library with debug information:

# cd bsp_working_dir/src/hardware/startup/lib/ppc/
# make clean
# make CCOPTS=-g
# cp libstartup.a bsp_working_dir/sandpoint/install/ppcbe/lib
# make install

The above steps recompile the PowerPC startup library (libstartup.a) with DWARF debug information and copy this library to the Sandpoint install directory. The Sandpoint BSP is configured to look for this library first in its install directory. The make install is optional, and copies libstartup.a to /ppcbe/usr/lib.

To build the Sandpoint startup with debugging information:

# cd bsp_working_dir/sandpoint/src/hardware/startup/boards/sandpoint/ppc/be
# make clean
# make CCOPTS=-g
# make install

The above steps generate the file startup-sandpoint with symbol and debug information. Again, you can use the -gstabs+ debug option instead of -g. The make install is necessary, and copies startup-sandpoint into the Sandpoint install directory, bsp_working_dir/sandpoint/install/ppcbe/boot/sys.

Note: You can't load the startup-sandpoint ELF file into the hardware debugger to obtain the debug symbols, because the mkifs utility adds an offset to the addresses defined in the symbols according to the offset specified in the build file.

Modify the build file to include the +keeplinked attribute for startup:

# cd bsp_working_dir/sandpoint/images

Modify the startup line of your build file to look like:

[virtual=ppcbe,binary +compress] .bootstrap = {
        [+keeplinked] startup-sandpoint -vvv -D8250
    PATH=/proc/boot procnto-600 -vv

The +keeplinked option makes mkifs generate a symbol file that represents the debug information positioned within the image filesystem by the specified offset.

To rebuild the image to generate the symbol file:

# cd bsp_working_dir/sandpoint/images
# make clean

Then, if you're using one of the provided .build files:

# make all


# mkifs -v -r ../install image

These commands create the symbol file, startup-sandpoint.sym. You can use the objdump utility to view the ELF information.

To view the symbol information contained in the startup-sandpoint.sym file:

# objdump -t startup-sandpoint.sym | less

You can now import the startup-sandpoint.sym file into a hardware debugger to provide the symbol information required for debugging startup. In addition, the hardware debugger needs the source code listings found in the following directories:
