PtPane

A container that provides anchoring and layout for its children

Class hierarchy:

PtWidget --> PtBasic --> PtContainer --> PtPane

For more information, see the diagram of the widget hierarchy.

PhAB icon:

PtPane button in PhAB

Public header:

<photon/PtPane.h>

Description:

PtPane is a container widget that provides anchoring and layout for its children. Any child widgets that extend beyond the canvas of the PtPane widget are clipped. You should find this widget useful for screen layouts.

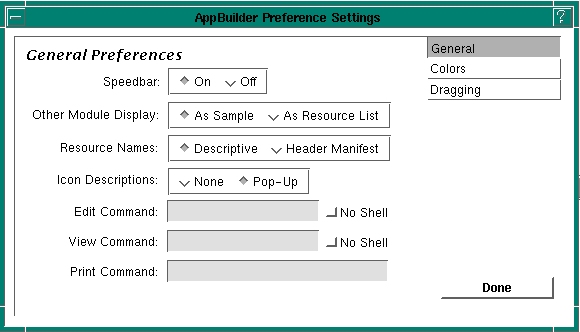

PtPane


A dialog box featuring several PtPane widgets.


Inherited resources:

If the widget modifies an inherited resource, the "Default override" column indicates the new value. This modification affects any subclasses of the widget.

Resource Inherited from Default override
Pt_ARG_ANCHOR_FLAGS PtContainer Pt_LEFT_ANCHORED_LEFT|
Pt_RIGHT_ANCHORED_LEFT|
Pt_TOP_ANCHORED_TOP|
Pt_BOTTOM_ANCHORED_TOP
Pt_ARG_ANCHOR_OFFSETS PtContainer
Pt_ARG_AREA PtWidget
Pt_ARG_BANDWIDTH_THRESHOLD PtBasic Not used by this class.
Pt_ARG_BITMAP_CURSOR PtWidget
Pt_ARG_BORDER_WIDTH PtWidget 0
Pt_ARG_BOT_BORDER_COLOR PtBasic
Pt_ARG_COLOR PtBasic
Pt_ARG_CONTAINER_FLAGS PtContainer
Pt_ARG_CURSOR_COLOR PtWidget
Pt_ARG_CURSOR_TYPE PtWidget
Pt_ARG_DATA PtWidget
Pt_ARG_DIM PtWidget
Pt_ARG_EFLAGS PtWidget Pt_CONSUME_EVENTS
Pt_ARG_FILL_COLOR PtBasic
Pt_ARG_FILL_PATTERN PtBasic
Pt_ARG_FLAGS PtWidget 0
Pt_ARG_HELP_TOPIC PtWidget
Pt_ARG_HIGHLIGHT_ROUNDNESS PtBasic
Pt_ARG_MARGIN_HEIGHT PtBasic
Pt_ARG_MARGIN_WIDTH PtBasic
Pt_ARG_POS PtWidget
Pt_ARG_RESIZE_FLAGS PtWidget
Pt_ARG_TOP_BORDER_COLOR PtBasic
Pt_ARG_TRANS_PATTERN PtBasic
Pt_ARG_USER_DATA PtWidget
Pt_CB_ACTIVATE PtBasic
Pt_CB_ARM PtBasic
Pt_CB_BALLOONS PtContainer
Pt_CB_BLOCKED PtWidget
Pt_CB_DESTROYED PtWidget
Pt_CB_DISARM PtBasic
Pt_CB_FILTER PtContainer
Pt_CB_GOT_FOCUS PtBasic
Pt_CB_HOTKEY PtWidget
Pt_CB_LOST_FOCUS PtBasic
Pt_CB_MENU PtBasic
Pt_CB_RAW PtWidget
Pt_CB_REALIZED PtWidget
Pt_CB_REPEAT PtBasic
Pt_CB_RESIZE PtContainer
Pt_CB_UNREALIZED PtWidget
