There are various types of applications that you can create for your ADAS
system.
Provided with
QNX Platform for ADAS are sample applications that fall under one of these categories:
- ADAS applications
- Publish and subscribe data applications
Note: If you are building applications for a safety-related system, see
the documentation for the QNX OS for Safety 2.0.

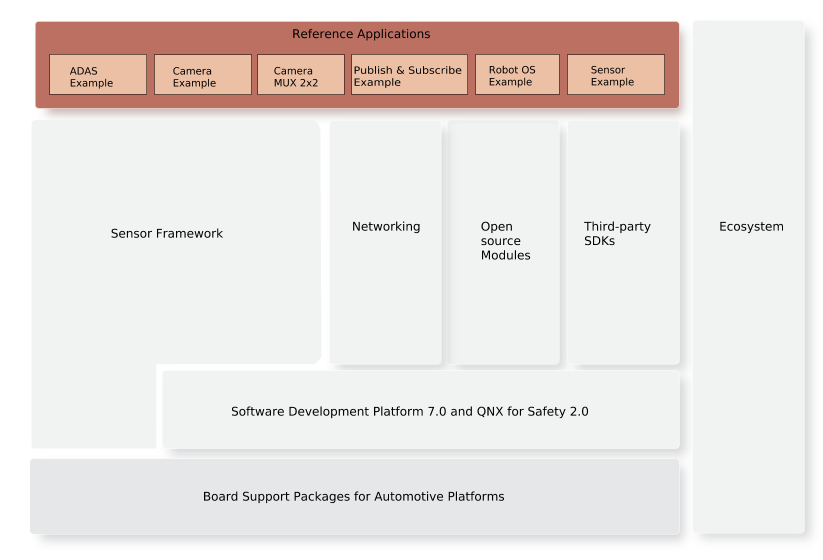

Figure 1. Sensor Framework and QNX Platform for ADAS Services.
ADAS applications
To create applications that provide ADAS functions, you can use
Camera, Sensor, and ADAS libraries that come with the Sensor Framework.
Applications that use the Camera library can take the video stream from a camera
and then use vision algorithms to stitch the images together to create
surround view of its environment or identify objects in the video, such as traffic lights,
other vehicles, or pedestrians.
Applications that use the Sensor framework can gather the information from multiple sensors and publish
the data to other applications in the system, and subscribe to data from publisher.
Applications that use the ADAS library can visualize sensor data from a camera or point cloud viewer (viewers), overlay text, rectangles, or images over
visualized sensor data, apply vision algorithms to the data to overlay track information on the viewers.

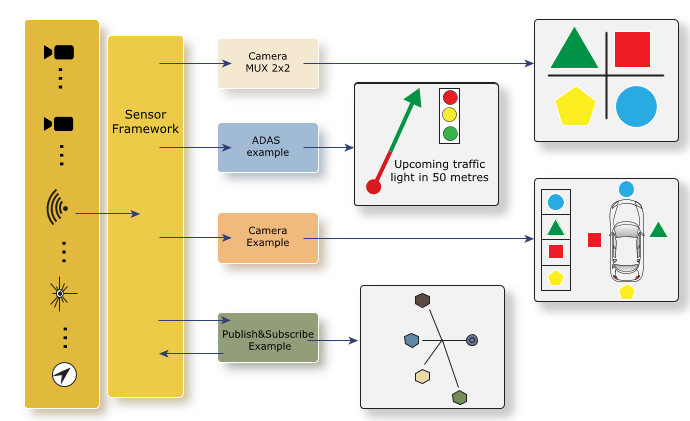

Figure 2. Sample applications that use the Sensor Framework
For more information, see the
Camera Developer's guide,
the
Sensor Developer's Guide,
ADAS Developer's Guide, and the
System Services guide.
For example, you can build an application that runs as soon as the system boots to provide feeds
from sensors and cameras connected to the system. Included on most of the provided reference images
is the
ADAS example application that boots immediately and shows an image from
various sensors representing the car and its surroundings. The example visualizes data and provides overlays (boxes)
that highlight the traffic light and provide a representation of the vehicle's surroundings as shown in the illustrations below.

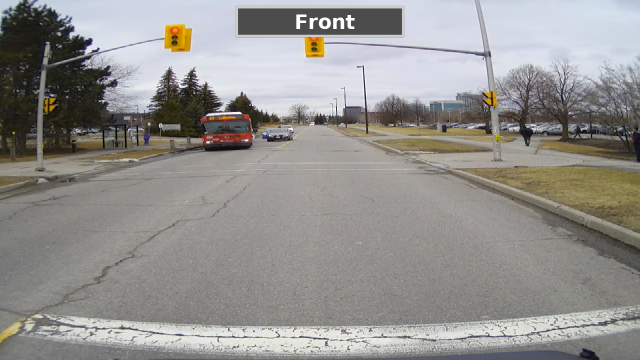

Figure 3. Front view running on ADAS example application

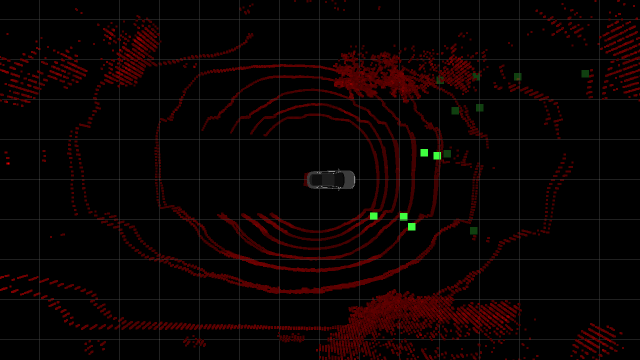

Figure 4. Point cloud showing multiple sensors for a bird's eye view
In addition to the ADAS example application, there are some other
sample applications available on the reference images (depending on the hardware platform), such as:
- Sensor example, which demonstrates how to use the Sensor library
- Camera example, which demonstrates how to use the Camera library
- Camera MUX 2x2, which shows a 2x2 grid of different views
- Robot OS example, which shows how to publish and subscribe to data from a sensor
using Robot OS (ROS)
- Publish and Subscribe example, which shows to publish data from a
sensor using Platform-independent Publish Subscribe (PiPS) using
Fast RTPS. You can configure the application to use SOME/IP or RTI
Connext Pro.
For more information about these sample applications, see the
Run Sample Applications chapter in the Getting Started
guide for the hardware platform you want to use.
