PtPrintSelection()

Display a modal dialog for selecting print options

Synopsis:

int PtPrintSelection( PtWidget_t *parent,
                      PhPoint_t const *pos,
                      const char *title,
                      PpPrintContext_t *context,
                      unsigned flags);

Arguments:

parent: A pointer to the parent widget for the dialog. If the parent widget isn't NULL, it's blocked and its cursor is changed to reflect this.
The parent argument is also used to position the dialog, as described below.
pos: A pointer to a PhPoint_t structure that specifies the position of the dialog (see below).
title: The title of the dialog; if this is NULL, a default title of "Select Printer" is used.
context: A pointer to a PpPrintContext_t structure that was created by PpCreatePC(). This pointer must not be NULL. PtPrintSelection() updates the print context.
flags: Flags that enable or disable parts of the user interface (see below). This argument should normally be set to Pt_PRINTSEL_DFLT_LOOK.

Description:

This convenience function displays a PtPrintSel widget and a button-pane in a modal dialog. It lets you select print options and initiate printing:

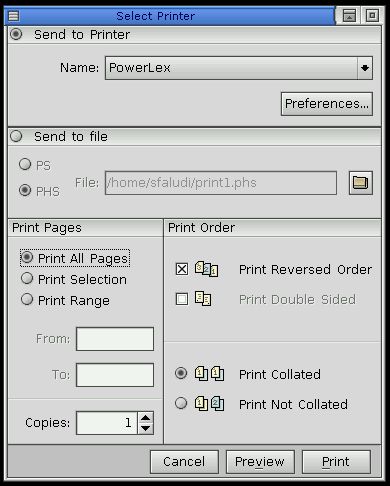

PtPrintSelection() dialog

The parent and pos arguments determine where the dialog is to appear:

parent	pos	Position of dialog
NULL	NULL	Center of the screen
NULL	Non-NULL	pos relative to the screen
Non-NULL	NULL	Center of parent
Non-NULL	Non-NULL	pos relative to parent

Your application can call PpSetPC() to modify the print context before calling PtPrintSelection(). These modifications are propagated to the PtPrintSel widget. Note that some modified context settings may not be displayed or may be reset (e.g. if the selected printer doesn't support double-sided printing and the Pp_PC_DUPLEX member was set in the context before calling PtPrintSelection()).

The valid flags are those defined for Pt_ARG_PRINT_FLAGS:

Pt_PRINTSEL_FILE_PANE: Enable the Send to file pane.
Pt_PRINTSEL_NO_COPIES: Disable the Copies widget.
Pt_PRINTSEL_NO_PAGE_RANGE: Disable the Print Range toggle button and the From and To fields.
Pt_PRINTSEL_NO_PRINTSELECT: Disable the printer-name combobox. Physical output goes to the default physical printer whose name is shown.
Pt_PRINTSEL_NO_SELECT_RANGE: Disable the Print Selection toggle button.
Pt_PRINTSEL_PREFERENCES: Enable the Preferences button.
Pt_PRINTSEL_SETTINGS_PANE: Enable the Print Pages, Print Order and Copies panes.

The following flag macros are defined in <PtPrintSel.h>:

Pt_PRINTSEL_ALL_PANES: Pt_PRINTSEL_FILE_PANE | Pt_PRINTSEL_SETTINGS_PANE
Pt_PRINTSEL_DFLT_LOOK: Pt_PRINTSEL_FILE_PANE | Pt_PRINTSEL_SETTINGS_PANE | Pt_PRINTSEL_PREFERENCES

The user may click one of these buttons:

Print
Preview
Cancel

Returns:

An integer that indicates which button was pressed:

Pt_PRINTSEL_PRINT
Pt_PRINTSEL_PREVIEW
Pt_PRINTSEL_CANCEL

The Pp_PC_DO_PREVIEW member of the print context is set when the user presses the Preview button. This means that the context can be passed to the printing function, which spawn the print-preview application if necessary.

Examples:

See PpContinueJob().

Classification:

Photon

Safety:
Interrupt handler	No
Signal handler	No
Thread	No

PtPrintSelection
