Print Spooling

This chapter covers the following topics:


Sharing resources on a network

QNX encourages the network-wide distribution of resources with few artificial boundaries. Every device (disk, modem, printer, etc.) connected to a computer is, by default, a shared resource -- a program running on any computer has equal access to any device on the network, whether the device is connected to the same computer (local) or to another machine (remote).

Although it's easy for a user to transparently access any resource on the network, the system administrator may need to take steps to control access to certain types of resources. Most printers, for example, can be used by only one user at a time and therefore require some sort of enqueuing facility to avoid conflicts. To allow convenient access to printers, QNX provides a set of spooling services.


A spooler is simply a mechanism that accepts requests for a resource and then allocates the use of the resource according to a set of specified rules.

To understand how a spooler can be useful, let's look at how it controls access to a printer. A printer must be available at all times to users, yet it can print only one job at a time. If a spooler is present, users can send their data through the spooler rather than directly to the printer. Upon receiving data destined for the printer, the spooler writes this data into a temporary file instead of sending it immediately to the printer. Later, when the printer becomes available, the spooler will write the data to the printer. Thus, many users can freely submit print jobs to one physical printer.

QNX implements spooling through the use of named queues that are referenced by the "lp" set of utilities; these queues also reside in the file namespace in the /dev/spool directory. Data written to a queue will be placed on an internal list and ultimately sent to a defined output device.

The QNX spooling server (lpsrvr) can maintain many different spool queues. The following utilities operate on spool queues:

submit files to a spool queue
remove jobs from a spool queue
control spooler queue
display spool queue status

For more information on these utilities, see the Utilities Reference. For information about how to queue print jobs to a printer on a TCP/IP network, see the chapter on remote printing in the TCP/IP for QNX User's Guide.

Using the spool utilities

Starting the spooler

Before any spooling can occur in a QNX system, you must run lpsrvr:

lpsrvr &

To determine what resources it has available, and how it's expected to manage them, the lpsrvr utility first looks for a setup file called /etc/config/lpsrvr.node (where node is the node ID of the node lpsrvr is running on). If no setup file is found with a .node extension, lpsrvr will use the /etc/config/lpsrvr file.

Submitting spool jobs

The following lp command will cause the file report to be inserted into the default spool queue and ultimately printed:

lp report

For more information on the default queue, see "The spool setup file" in this chapter.

In systems where more than one spool queue is available, you can specify the queue name. The following command inserts report into a spool queue called txt:

lp -P txt report

You could also use a command that writes directly to the queue file:

cp report /dev/spool/txt

Querying spool jobs

To examine the spool queue, you can use the lpq utility. The following is a sample output from lpq:

1:  fred   [job #39]   1400 bytes  lalist.doc
2:  wilma  [job #42]   2312 bytes  netdrvr.c

This utility lets you determine when any submitted jobs have been completed; it also provides the spool job ID for use with other lp utilities.

Canceling spool jobs

The lprm utility lets you remove jobs from a spool queue. You can remove a job explicitly by specifying its job ID number. Given the state of the default queue shown above, fred's job (#39) could be canceled with this command:

lprm 39

If job #39 is currently in progress, it will be abandoned. The success of abandoning current spool jobs may vary with the type of output device you're using -- some printers have large internal buffers.

The superuser may also remove all jobs belonging to a particular user. For example, all of fred's jobs can be canceled with the following command:

lprm fred

Controlling the spool queues

The lpc utility is a system administration tool for managing spoolers. It lets you perform many control functions, such as starting up or shutting down a queue. The following basic functions are provided:

Note that lpc's functionality overlaps that of lpq and lprm. This overlap is convenient, because unlike lpq and lprm, lpc can be used interactively.

Spooler architecture

The QNX spooling system is based on two objects: queues and targets. These work with each other to provide a flexible method of controlling data transformations and queuing.

A queue is an internal list of pending data to be sent to a target. As mentioned earlier, each queue is given a name that users specify when submitting jobs.

A target is associated with the physical output device (e.g. a printer) and removes jobs from queues. You can connect the output of a queue to one or more targets or connect multiple queues to a single target. However, you can connect the output of a target to only one device.

Queues can have optional attributes called filters, which are of two types:

For example:

ci=a2ps -H"$(file)" | awk '/%%EndProlog/ { print "<< /Duplex \
    true >> setpagedevice"; } { print $0; }'
co=echo $(username)"\n" "put" $(spfile) | SOCK=666 /usr/ucb/ftp net_printer

Targets may have an optional control program (cp) that allows the output device to be initialized between jobs if required. For example, if a job were canceled and the device needed to be primed again, a device-specific control program could detect SIGTERM and take whatever action necessary to restore the device to a stable state.

The following diagrams illustrate how queues, filters, and targets can be configured to work with each other.

One queue feeding a single target

The following configuration could be used where there's a single printer and where a single (or no) translation of the data is required:

Opening screen

Multiple queues feeding a single target

Multiple queues may feed a single target, in which case the target will select the appropriate job from all the jobs in those queues based upon queue priority, then upon time of submission (i.e. the oldest pending job).

Opening screen

At the end of this chapter, you'll find several example setup files. The above configuration is used in the example file in which one queue converts ASCII to PostScript, while the other is a direct PostScript queue. Both queues feed the same target, which sends the data to a PostScript printer.

One queue feeding multiple targets

If the output of a queue is sent to many targets, the spooler will select whichever target is available. The following configuration is useful if you have three printers side by side and it doesn't matter which one prints your job.

Opening screen

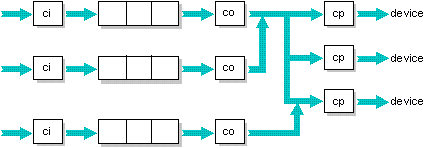

Multiple queues feeding multiple targets

The following configuration is a combination of the previous two examples. A third queue has a separate channel to one of the targets. This channel could be used to ensure that jobs requiring the third printer are always sent to that printer (e.g. the printer has color capabilities).

Opening screen

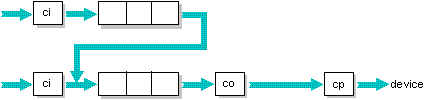

Chaining queues

The output of a queue is usually sent to one or more targets, but it's possible instead to chain the output into another queue.

With chaining, the output of a queue is placed directly onto the destination queue, thus avoiding any possible copy-in operation on that queue. If the final queue in a chain has a copy-out filter, the filter will be applied.

Opening screen

The spool setup file

When started, the spooler accesses a file to get its configuration information. If no file is specified on the command line, the spooler uses the /etc/config/lpsrvr file. This file defines queues, targets, and the relationships between them.

Syntax definitions

Queues and targets have symbolic names as well as a set of attributes. Each entry in the setup file has the following format:


The definition of a queue or target begins with a [name] directive and consists of all valid attribute specifications until the next [name] directive. All leading white space is ignored. Comment lines start with a pound sign (#).

To continue a single attribute beyond one line, you must put a backlash (\) right before the newline character.

The name may be up to 48 characters long and may contain only alphanumeric characters.

If the object being described is a target, the name must be preceded by a dash (-). The dash is for delineation only; it isn't considered part of the name.

Each attribute consists of a two-letter key in one of the following forms:

All numbers are assumed to be decimal numbers, unless they start with a leading zero (meaning octal) or a leading 0x (meaning hex).

All strings contain printable characters. The backslash (\) is a "special" character. It can be used to escape other characters. For example, a "real" backslash must be represented with: \\

The following table describes all defined keys, including the default used for each key if its corresponding attribute isn't specified. In the Use column, "Q" means "queue," "T" means "target," and "G" means "global."

Key: Description: Default: Use:
ab=string Executed when target abandons command for any reason nil; no command is executed T
af=string accounting file that commands may use accounting isn't performed (lpsrvr logging is unaffected) Q
cd=string directory where temporary spool files are found /usr/spool/lp G
ci=string copy-in command; used before placing the job on the queue binary copy-in of job; no transformation applied Q
co=string copy-out command; used when removing job from queue binary copy-out of job; no transformation applied Q
cp=string device control program; used by the target binary copy of job; no transformation applied T
dv=string device that the target uses output is sent to standard output of lpsrvr Q, T
mn#numeric minimum number of jobs for queue before flushing 0; jobs are despooled ASAP Q
mx#numeric maximum number of jobs the queue will hold no limit; queue limits are based on memory and disk space Q
na=string name; a string that describes the queue or target nil string Q, T
ok=string command executed when target completes normally nil; no action is performed T
pr#numeric priority to run this queue at (1-100); 100 is the highest 50 Q
qn=string queue to chain a despooled job onto nil; delete job after despooling Q
re#numeric retries when a job fails 0 Q
rt#numeric retry time; number of seconds or die forever Q
sp=string registered name of spooler maintaining this queue /qnx/spooler; registered only if no queue specifies a name G
ta=string target to be associated with this queue output is sent to standard output of lpsrvr Q
wa#numeric wait this number of seconds before despooling each job 0; jobs are despooled ASAP Q

Since the keys are case-sensitive, we reserve all keys formed by two lowercase letters. You can safely implement custom extensions by using uppercase or mixed-case keys. The spooler utilities will ignore any options they don't understand.

Global keywords

Two keywords, sp and cd, can define global information for the spooler. To make them apply globally, you precede these keywords with a pair of empty brackets ([ ]).

Registering names -- sp

Since the spooler always adopts the /dev/spool file namespace, only one spooler may run on each node. You can run multiple spoolers on your network if each spooler registers a different global name. Otherwise, each spooler will attempt to register the same default global name /qnx/spooler. With multiple spoolers, you may wish to use names such as /qnx/spooler2, /qnx/spooler3, and so on.

To specify the global name to be registered by a spooler, you use the sp command in the setup file. The name must always begin with a leading slash (/). If no sp keyword is specified, the default name /qnx/spooler is globally registered (i.e. network-wide).

Specifying a temporary directory for spool files  --  cd

The cd keyword lets you define the directory to use for the creation of the spooler's temporary spool files. By default, temporary files are created in the /usr/spool/lp directory. These files get deleted when they're no longer required.

Any path you specify to the cd keyword should begin with a leading slash. Note that the specified directory must exist, with appropriate access rights assigned.

The following example setup file informs the spooler to register the name /qnx/spooler2; it also places temporary files in the /tmp/spool2 directory:

# Global spooler variables

[ ]

# Text queue


The spooler will set the following variables appropriately when it encounters them:

Variable: Description:
$(file) the filename of the submitted file or "--standard input--" if no name is provided
$(fname) the fully resolved pathname of the submitted file or "--standard input--" if no name is provided
$(spfile) the name of the spool data file
$(username) the login name of the user who submitted the job
$(userid) the numeric user ID of the user who submitted the job
$(queue) the name of the queue the job currently belongs to
$(target) the name of the target the job currently belongs to
$(device) the name of the device the job is scheduled on
$(ncopies) the number of copies the user requested
$(jobid) the job ID number of this job
$(cifile) a temporary name that copy-in routines may use

In addition, all the keys defined above can be referenced as variables. For example, $(ci) will expand to the name of the copy-in command, ci=string.

Default behavior

The cat command is used as the default copy-in and copy-out filter commands. Also, unless otherwise specified in the setup file, the standard input and standard output of filter commands are automatically connected to default files or processes. The default for copy-in is as follows:

cat < $(fname) > $(spfile)

There are two possible defaults for a copy-out, depending on whether or not a control program (i.e. cp) is defined:

cat < $(spfile) > $(device)
cat < $(spfile) | $(cp) > $(device)

For example, a setup file like this:

    ci=pr -f -h


would result in the following substitutions:

pr -f -h < $(fname) > $(spfile)
txt2ps < $(spfile) | init_printer > /dev/par

Using setup files

Queues and targets

When you create a setup file, you specify each queue by giving it a name and an optional list of parameters; you specify each target by starting its name with a dash (-). To illustrate, here's a very simple setup file:



In this file we have a queue called txt and a target called lpt. When data is sent to the txt spool queue, the data is saved in a temporary spool file and is known as a "job." When the spooler removes that job from the queue, the job is placed on the target, lpt, which then directs the data to the parallel port, /dev/par.


It's often necessary to filter spooled data, so lpsrvr provides the copy-in and copy-out mechanisms. As mentioned earlier, copy-in is run before the data is placed on the queue, while copy-out is run after the data is removed from the queue.

Note that if you have many queues feeding a single target and one of the queues has a copy-out filter that may take a long time to run, the target will be temporarily unavailable to the remaining queues if that queue is selected. (For more information, see the "Example setup files" section.)

Note: It's good practice to put double quotes around variables to ensure they're "safe" for the command.

Using copy-in

A good example of the use of a copy-in filter is to pass the data through pr to paginate it:

    ci=pr -f -h "$(file)"


Using copy-out

You might use a copy-out filter, for example, when you have both a PostScript printer and an HP printer. You could have two copy-out filters to generate the proper output format. Let's say you have two programs: txt2ps, which generates PostScript, and txt2hpgl, which generates HPGL:





Note: Don't hardcode the output device in a copy-out definition; use targets for this purpose. Targets must have exclusive use of a device and should be the only means of accessing a device within the spooling system.

Chaining queues

Queues can be chained -- this moves the job from queue to queue. The following is a simple example of chaining onto a queue named tmp, which then sends the data to the lpt target:




Accounting information

The af keyword lets you specify a filename that the commands may access as $(af) so they can write any information they want to log.

Input errors

The invoking lp utility will report any errors that occur during the input of data into a queue. If you submit data by directly writing to the spool file in the /dev/spool directory, write errors will occur if something prevents a successful copy into the queue.

Output errors

You can use the ab keyword to specify a command to execute if a target abandons a job. The following would inform the invoking user of the error via a mail message:

ab=echo lpsrvr print job $(jobid), file $(file) failed \
| mailx $(username)

Example setup files

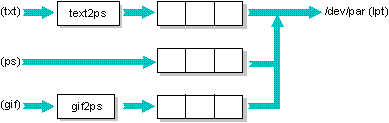

Multiple queues feeding a single target

The following example shows a set of queues that share a common target. The three queues are named:

The configuration is as follows:

Opening screen

Here's the file to set this up:

# ASCII to PostScript queue:

# direct PostScript queue:

# GIF to PostScript queue:

# target printer:

In this example, users send files with the lp utility to the appropriate queue, which converts the file through a copy-in filter (except for the ps queue). The queue then sends the converted data to the target, /dev/par.

Since the hypothetical filter programs text2ps and gif2ps may take a relatively long time to process a job, copy-in filters are used rather than copy-out filters. A copy-out filter will tie up the target, preventing other jobs from being dequeued while the filter is running. The chosen configuration allows other jobs to be sent to the target while the PostScript translation is being generated.

Also, since GIF files tend to be large, they're assigned a lower priority than the others.

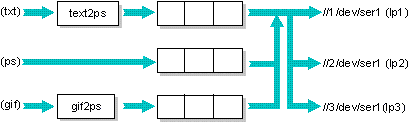

Multiple queues feeding three targets

The following example is a further refinement of the above setup, with some additional features required for a larger configuration. There are now three printers, all PostScript, located in different parts of the building (connected to //1/dev/ser1, //2/dev/ser1, and //3/dev/ser1). The configuration looks like this:

Opening screen

Here's the file to set this up:

# ASCII to PostScript queue:

# direct PostScript queue:

# GIF to PostScript queue:

# target printers:
    ok=echo file $(fname) sent to $(target) \
    | mailx $(username)
    ab=echo file $(fname) did not get printed \
    | mailx $(username)

    ok=echo file $(fname) sent to $(target) \
    | mailx $(username)
    ab=echo file $(fname) did not get printed \
    | mailx $(username)

    ok=echo file $(fname) sent to $(target) \
    | mailx $(username)
    ab=echo file $(fname) did not get printed \
    | mailx $(username)

The above configuration uses the same three queues described earlier (txt, ps, and gif) but they now feed three separate targets. The spooler selects the first available target from the set of targets (lp1, lp2, lp3) and sends the data to its corresponding printer.

Queue selection is based on priority first, then on the age of the job.

In this example, a mail message is sent to the submitter indicating whether or not the job completed normally.

Accessing spoolers and queues

Many spoolers may be present on a network; each of these can maintain multiple queues. To communicate with any given spooler, the lp utilities first locate the spooler through the unique global name that the spooler registers (see the "Global keywords" section).

When using any lp utility, you can:

If you don't specify the spooler on the command line, the utility checks the LPSRVR environment variable, which contains the name of the default spooler. However, if LPSRVR isn't defined, the utility will use the spooler that has registered the default global name /qnx/spooler.

If the utility successfully locates a spooler, but you haven't specified a queue on the command line, the utility will check the LPDEST environment variable, which contains the name of the default queue. However, if LPDEST isn't defined, the utility will use the first queue entry in the setup file of the located spooler.


The LPSRVR and LPDEST environment variables are used when the command-line information given to the lp utilities doesn't fully specify which spooler or queue to use.


LPSRVR specifies the default spooler. The following setting of LPSRVR would indicate that the default spooler is the one with the name /qnx/spooler2:

export LPSRVR=/qnx/spooler2

The name specified in LPSRVR must always begin with a leading slash. LPSRVR must never contain the name of a queue.


LPDEST specifies the default queue. You can use LPDEST in two ways. You can specify a queue only:

export LPDEST=waybills

Or you can specify a spooler and a queue:

Opening screen

If you specify a spooler in LPDEST, the LPSRVR variable is ignored, even if it's defined.

Note: For compatibility, the lp utilities look at the PRINTER environment variable if LPDEST isn't present.


Let's look at a few simple examples that show some of the ways you can specify spoolers and queues. For these examples, let's assume you have two spoolers on the network, each with two queues.

The first spooler uses the default global name, /qnx/spooler; its queues are named txt and ps. The second spooler uses the name /qnx/spooler2; its queues are named checks and waybills.

First spooler: Second spooler:
/qnx/spooler/txt /qnx/spooler2/checks
/qnx/spooler/ps /qnx/spooler2/waybills

Naming neither a spooler nor a queue

Let's say you enter the following lp command, specifying neither a spooler nor a queue:

lp test.dat

The utility will first try to locate a spooler by checking LPSRVR. If that variable isn't defined, the utility will locate the spooler with the default global name /qnx/spooler.

The utility will then try to determine the queue by checking LPDEST. If that variable isn't defined, the utility will select the first queue specified in the setup file of the located spooler.

Naming only the spooler

If you specify a string that begins with a leading slash, the string is always assumed to be a spooler name. Thus, if you enter the following command, the utility will treat /qnx/spooler2 as a spooler:

lp -P /qnx/spooler2 test.dat

Because the second spooler uses /qnx/spooler2 as its name, that spooler will be located. The utility will then try to use LPDEST as the default queue. If LPDEST isn't defined, the job is submitted to the queue checks, since that's the first queue in the setup file of /qnx/spooler2.

Naming only the queue

If you specify a string that doesn't begin with a leading slash, the string is always assumed to be a queue name. Thus, if you enter the following command, the utility will treat txt as a queue:

lp -P txt test.dat

The utility will first try to locate a spooler by checking LPSRVR. If that variable isn't defined, the utility will use the first spooler, since that spooler has registered the default global name, /qnx/spooler.

Naming both the spooler and the queue

In the following example, both the spooler and the queue are named. Since the string begins with a leading slash, the utility will initially attempt to find a spooler called /qnx/spooler2/waybills.

lp -P /qnx/spooler2/waybills test.dat

However, since the spooler /qnx/spooler2/waybills doesn't exist, the search will fail, at which point the utility will treat the specified string as a spooler name followed by a queue name. The spooler with the name /qnx/spooler2 will be located, and jobs will be submitted to the waybills queue on that spooler.

Initialization files

You might find it useful to configure several default spoolers, if, for example, your marketing, sales, and R&D departments each has a spooler running:

LPSRVR=/qnx/spooler (marketing)
LPSRVR=/qnx/spooler2 (sales)
LPSRVR=/qnx/spooler3 (R&D)

You normally initialize environment variables beforehand in system initialization files. You may wish to use one of the following files to initialize the variables:

/etc/config/sysinit.node (run at boot time)
/etc/default/login (run at login time)
/etc/profile (run by every login shell).

[Previous] [Contents] [Index] [Next]
