Connect cameras and sensors

Updated: April 19, 2023

You can connect a USB camera to your target system to work with the reference image.

After the USB camera is connected, you must ensure that it is made available by VMware:

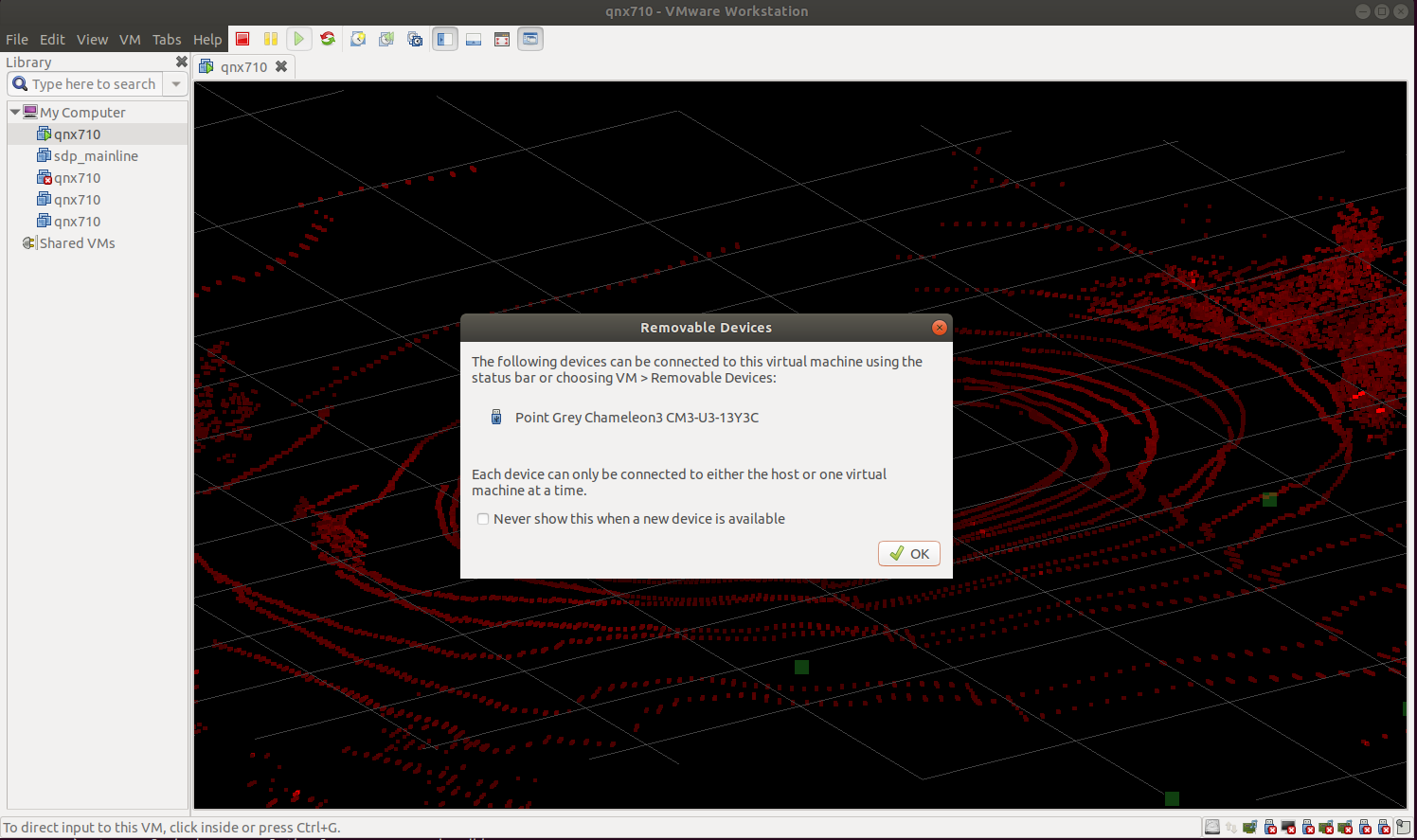

  1. When the camera is detected by the VMware image before a connection is established, a popup window appears:

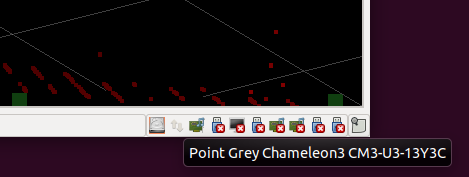

  2. Find the USB camera by hovering over the not connected devices area in the bottom right corner of the VMware window:

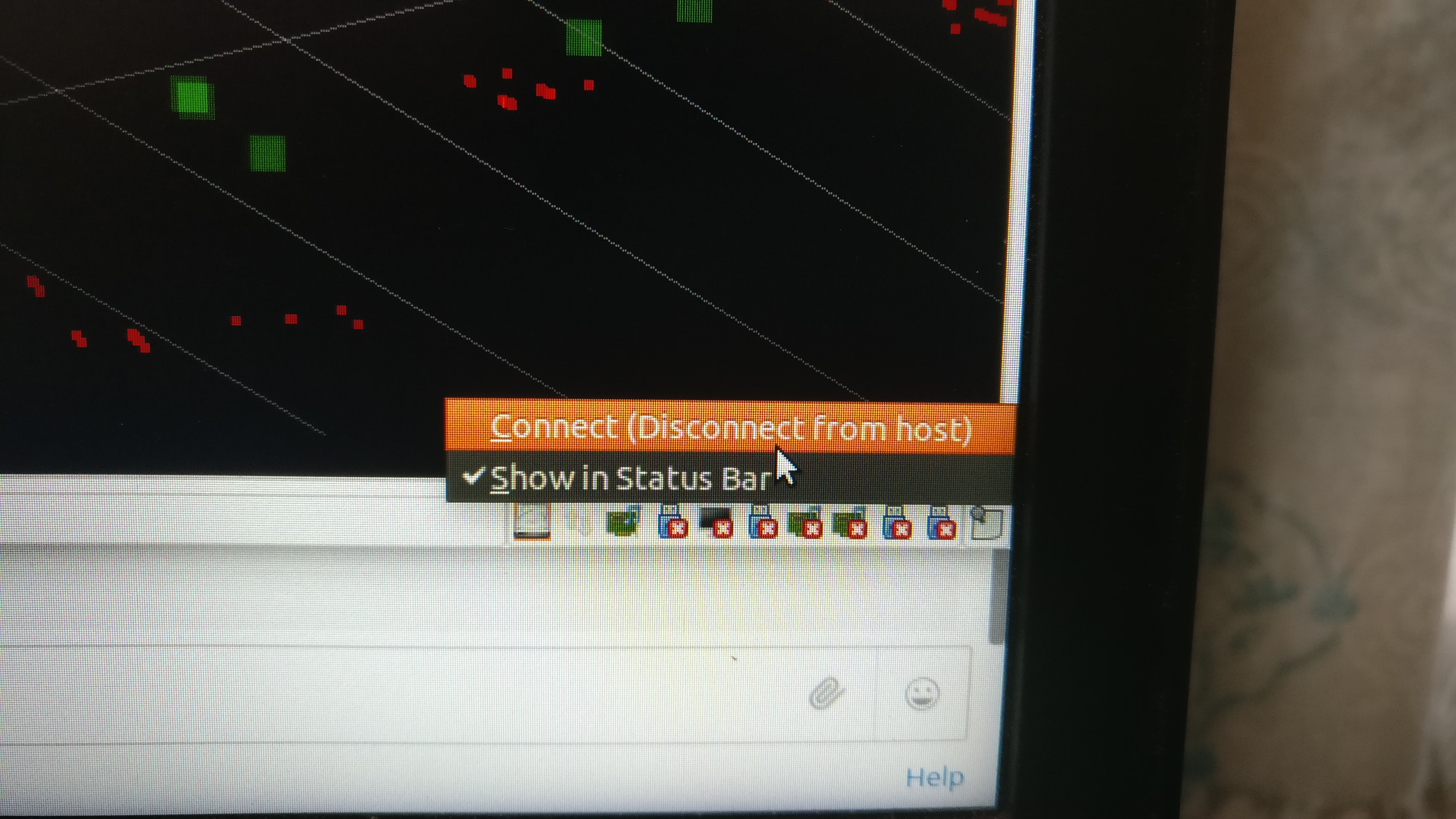

  3. Right-click the USB camera and then select Connect from the context menu:
