Multiple Consumers and Producers

It can get complicated when there are multiple producers and consumers within a system.

It's important to understand the cardinality that's supported between the producer and consumer streams.

Producer stream-to-Consumer stream cardinality Supported?
One-to-one
Yes
One-to-many
Yes
Many-to-one
No

Essentially, a producer stream can be connected with multiple consumer streams, but a consumer stream can be connected to only one producer stream. Note that the cardinality relationship is restricted to individual streams, not to producer or consumer applications. Producer and consumer applications can create multiple streams each.

The following example illustrates how producer and consumer applications can use streams based on the supported cardinality.

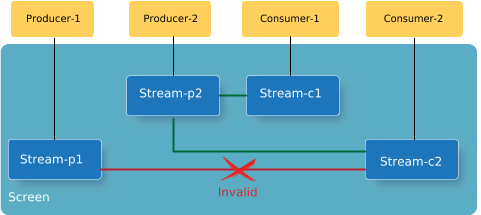

Figure 1. An example of a consumer that's incorrectly trying to consume from multiple producer streams

In this example, Stream-p2 is connected to, and being consumed by Stream-c1 and Stream-c2. However, because Stream-c2 is already consuming from Stream-p2, it can't also consume from Stream-p1.

If a consumer requires content from multiple producers, then it must manage multiple consumer streams. For Consumer-2 in this example to consume Stream-p1 as well as Stream-p2, it must create two separate streams and connect one to Stream-p1, and one to Stream-p2.

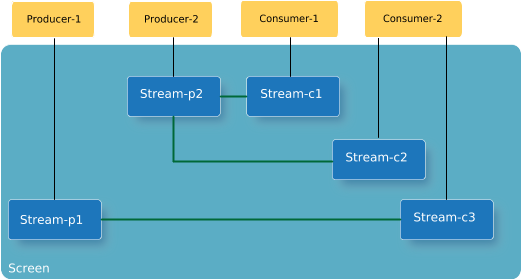

Figure 2. An example of a consumer that uses multiple consumer streams to consume from multiple producer streams
