Installing the Lauterbach Trace32 Eclipse plugin software

The Lauterbach Trace32 Eclipse plugin software links the IDE and the Lauterbach debugger, providing the connection between both development environments. The plugin adds a launch configuration to the IDE that you can use to start existing Trace32 installations; however, it doesn't let you use Trace32 debug functionality such as watch variables or the step and go functionality within the IDE.
To install the Lauterbach Trace32 Eclipse plugin software:
  1. Launch the QNX Momentics IDE on the host machine.
  2. Select Help > Check For Updates > Find and Install.
  3. Select Search for new features to install, then click Next.

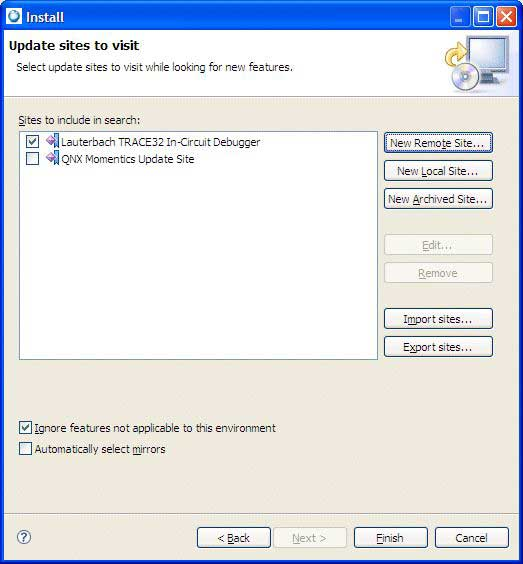

  4. Click New Remote Site.
  5. In the Name field of the New Update Sitedialog, type a name for the update site.
  6. In the URL field, type the URL, then click OK.
  7. Verify that the newly added site is selected, then click Finish.
  8. From the remote site, install the Lauterbach Trace32 In-Circuit Debugger Integration feature. If required, restart the IDE during the installation process for the changes to take effect.
The Lauterbach Trace32 In-Circuit Debugger now appears in the list of configuration types:

Lauterbach Trace32 In-Circuit Debugger launch configuration type

Also, the Lauterbach debugger icon () is added to the Toolbar. You can use this icon to conveniently launch the Lauterbach CMM PRACTICE script from an open launch configuration dialog.
