Getting to Know the OS

This chapter includes:

How QNX Neutrino compares to other operating systems
How QNX Neutrino is unique

How QNX Neutrino compares to other operating systems

This section describes how the QNX Neutrino RTOS compares to Unix and Microsoft Windows, from a user's (not a developer's) perspective. For more details about Neutrino's design and the philosophy behind it, see the System Architecture guide.

Unix

If you're familiar with Unix-style operating systems, you'll feel right at home with QNX Neutrino — many people even pronounce “QNX” to rhyme with “Unix” (some spell it out: Q-N-X). At the heart of the system is the Neutrino microkernel, procnto, surrounded by other processes and the familiar Korn shell, ksh (see the Using the Command Line chapter). Each process has its own process ID, or pid, and contains one or more threads.

To determine the release version of the kernel on your system, use the uname -a command. For more information, see its entry in the Utilities Reference.

Neutrino is a multiuser OS; it supports any number of users at a time. The users are organized into groups that share similar permissions on files and directories. For more information, see Managing User Accounts.

Neutrino follows various industry standards, including POSIX (shell and utilities) and TCP/IP. This can make porting existing code and scripts to Neutrino easier.

Neutrino's command line looks just like the Unix one; Neutrino supports many familiar utilities (grep, find, ls, gawk) and you can connect them with pipes, redirect the input and output, examine return codes, and so on. Many utilities are the same in Unix and Neutrino, but some have a different name or syntax in Neutrino:

Unix	Neutrino	See also:
`adduser`	`passwd`	Managing User Accounts
`at`	`cron`
`dmesg`	`slogger`, `sloginfo`
`fsck`	`chkfsys`, `chkqnx6fs`, `chkdosfs`	Backing Up and Recovering Data
`ifconfig eth0`	`ifconfig en0`	TCP/IP Networking
`lp`	`lpr`	Printing
`lpc`	`lprc`	Printing
`lpq`, `lpstat`	`lprq`	Printing
`lprm`, `cancel`	`lprrm`	Printing
`man`	`use`	Using the Command Line
`pg`	`less`, `more`	Using the Command Line

For details on each command, see the Neutrino Utilities Reference.

Microsoft Windows

QNX Neutrino and Windows have different architectures, but the main difference between them from a user's perspective is how you invoke programs. Much of what you do via a GUI in Windows you do in Neutrino through command-line utilities, configuration files, and scripts, although Neutrino does support a powerful Integrated Development Environment (IDE) to help you create, test, and debug software and embedded systems.

Here are some other differences:

QNX Neutrino and DOS use different end-of-line characters; Neutrino uses a linefeed, while DOS uses a carriage return and a linefeed. If you need to transfer text files from one OS to the other, you can use Neutrino's textto utility to convert the files. For example, to convert the end-of-line characters to Neutrino-style:
```
textto -l my_file
```
To convert the end-of-line characters to DOS-style:
```
textto -c my_file
```
Neutrino uses a slash (/) instead of a backslash (\) to separate components of a pathname.
You can't use DOS commands in Neutrino, but many have equivalent commands. For more information, see “Neutrino for MS-DOS users” in the Using the Command Line chapter of this guide.

Limitations

Although Neutrino is powerful enough to use as a desktop OS, we don't provide desktop applications such as word processing, spreadsheets, or email. Some of these applications might be available from other sources, such as the Bazaar on our Foundry 27 website, http://community.qnx.com.

If you're using Neutrino to support self-hosted development, you'll likely require an email solution of some sort. We suggest you consider using an email client or Mail User Agent such as Mozilla, mutt, or elm, along with the sendmail delivery agent; see Foundry 27.

You might find it useful to run an IMAP or POP server on another machine to host your email if you don't want to configure a local mail delivery using sendmail. Or, you may avoid using a local email client entirely by using a web-based mail service hosted on another machine.

How Neutrino is unique

Neutrino consists of a microkernel (procnto) and various processes. Each process — even a device driver — runs in its own virtual memory space.

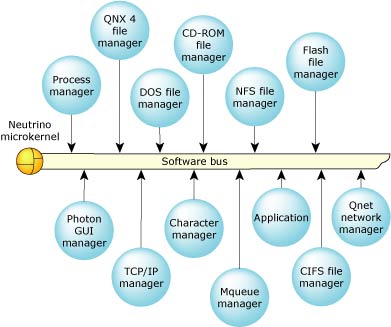

Figure showing Microkernel and system processes

The QNX Neutrino architecture.

The advantage of using virtual memory is that one process can't corrupt another process's memory space. For more information, see The Philosophy of QNX Neutrino in the System Architecture guide.

Neutrino's most important features are its microkernel architecture and the resource manager framework that takes advantage of it (for a brief introduction, see “Resource managers,” below). Drivers have exactly the same status as other user applications, so you debug them using the same high-level, source-aware, breakpointing IDE that you'd use for user applications. This also means that:

You aren't also debugging the kernel when you're debugging a driver.
A faulty driver isn't likely to crash the OS.
You can usually stop and restart a driver without rebooting the system.

Developers can usually eliminate interrupt handlers (typically the most tricky code of all) by moving the hardware manipulation code up to the application thread level — with all the debugging advantages and freedom from restrictions that that implies. This gives Neutrino an enormous advantage over monolithic systems.

Likewise, in installations in the field, the modularity of Neutrino's components allows for the kind of redundant coverage expressed in our simple, yet very effective, High Availability (HA) manager, making it much easier to construct extremely robust designs than is possible with a more fused approach. People seem naturally attracted to the ease with which functioning devices can be planted in the POSIX pathname space as well.

Developers, system administrators, and users also appreciate Neutrino's adherence to POSIX, the realtime responsiveness that comes from our devotion to short nonpreemptible code paths, and the general robustness of our microkernel.

Some x86 systems can run in System Management Mode (SMM), where the BIOS installs special code that runs when a System Management Interrupt (SMI) occurs. SMI interrupts may be generated by the motherboard or peripheral hardware, and can't be masked by the operating system. When SMM is entered, normal operations — including the OS — are suspended, and the SMI handler runs at a high priority. Avoid using systems where SMM can't be disabled, because it can destroy QNX Neutrino's realtime performance. The OS can't do anything about the delays that SMM introduces, nor can the OS even detect that the system has entered SMM.

Neutrino's microkernel architecture lets developers scale the code down to fit in a very constrained embedded system, but Neutrino is powerful enough to use as a desktop OS. Neutrino runs on multiple platforms, including x86, ARM, MIPS, PPC, and SH-4. It supports symmetric multiprocessing (SMP) and bound multiprocessing (BMP) on multicore systems with up to 32 processors; for more information, see the Multicore Processing User's Guide.

Neutrino also features the Qnet protocol, which provides transparent distributed processing — you can access the files or processes on any machine on your network as if they were on your own machine.

The QNX Aviage brand encompasses a portfolio of middleware products that help you create consumer-grade audio, video, and graphical products in record time. QNX Aviage software products accelerate your innovation by offering the following:

QNX Aviage Acoustic Processing: A sophisticated acoustic hands-free and speech-enhancement solution designed specifically for challenging automotive environments. Unlike traditional voice-quality enhancement solutions, it eliminates the need for dedicated hardware, lowers production costs, and increases design flexibility.
QNX Aviage HMI Suite: Allows embedded developers to implement easy-to-use and compelling user interfaces in Adobe Flash, thereby eliminating the lengthy process of coding HMIs with graphical APIs or cumbersome toolkits.
QNX Aviage Multimedia Suite: Configurable, fully featured media jukebox with supporting multimedia software for building next-generation digital infotainment platforms. Includes powerful APIs for quickly building multi-modal HMIs. Options include iPod support, Microsoft PlaysForSure support (with DRM), as well as an array of software codecs.

For more information about QNX Aviage middleware, contact your sales representative.

Resource managers

A resource manager is a server program that accepts messages from other programs and, optionally, communicates with hardware. All of the Neutrino device drivers and filesystems are implemented as resource managers.

Neutrino resource managers are responsible for presenting an interface to various types of devices. This may involve managing actual hardware devices (such as serial ports, parallel ports, network cards, and disk drives) or virtual devices (such as /dev/null, the network filesystem, and pseudo-ttys).

The binding between the resource manager and the client programs that use the associated resource is done through a flexible mechanism called pathname-space mapping. In pathname-space mapping, an association is made between a pathname and a resource manager. The resource manager sets up this mapping by informing the Neutrino process manager that it's responsible for handling requests at (or below, in the case of filesystems), a certain mountpoint. This allows the process manager to associate services (i.e. functions provided by resource managers) with pathnames.

Once the resource manager has established its pathname prefix, it receives messages whenever any client program tries to do an open(), read(), write(), etc. on that pathname.

For more detailed information on the resource manager concept, see Resource Managers in System Architecture.
