A PCM device is, at its simplest, a data buffer that's converted, one sample at a
time, by either a Digital Analog Converter (DAC) or an Analog Digital Converter (ADC),
depending on direction.
This simple idea becomes a little more complicated in QSA because of
the concept that the PCM subchannel is in a state at any given moment.
These states are defined as follows:
- SND_PCM_STATUS_NOTREADY
- The initial state of the device.
- SND_PCM_STATUS_READY
- The device has its parameters set for the data it will operate on.
- SND_PCM_STATUS_PREPARED
- The device has been prepared for operation and is able to run.
- SND_PCM_STATUS_RUNNING
- The device is running, transferring data to or from the buffer.
- SND_PCM_STATUS_UNDERRUN
- This state happens only to a playback device and is entered
when the buffer has no more data to be played.
- SND_PCM_STATUS_OVERRUN
- This state happens only to a capture device and is entered
when the buffer has no room for data.
- SND_PCM_STATUS_PAUSED
- The device has been paused.
- SND_PCM_STATUS_UNSECURE
- The application marked the stream as protected, the hardware
level supports a secure transport (e.g., HDCP for HDMI), and
authentication was lost.
- SND_PCM_STATUS_ERROR
- A hardware error has occurred, and the stream must be prepared again.
- SND_PCM_STATUS_CHANGE
- The stream has changed and must be prepared again.
In some cases, audio is redirected transparently between different audio devices, with different capabilities.
You can enable this by calling:
snd_pcm_plugin_set_enable(handle, PLUGIN_ROUTING);
If routing is enabled and the preferred device changes to an external device such as HDMI, audio
is automatically redirected to that device.
Once routing changes, the client receives a status of SND_PCM_STATUS_CHANGE.
When the client receives this, it may just call
snd_pcm_channel_prepare
to enter the SND_PCM_STATUS_PREPARED state, and be ready to continue playback,
but as the capabilities may have changed, (e.g., HDMI may support surround sound
output while a local speaker doesn't), the client may wish to call
snd_pcm_channel_info()
to check the capabilities, and change the audio characteristics in response before preparing.
- SND_PCM_STATUS_PREEMPTED
- Audio is blocked because another libasound
session has initiated playback, and the audio driver has determined that that
session has higher priority, and therefore the lower priority session is
terminated with state SND_PCM_STATUS_PREEMPTED.
When it receives this state,
the client should give up on playback, and not attempt to resume until either
the sound it wishes to produce has increased in priority, or a user initiates a retry.

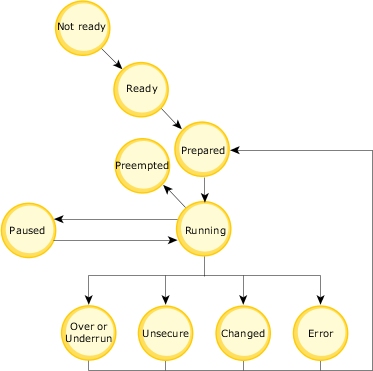

Figure 1. General state diagram for PCM devices.
The transition between states is the result of executing an API call,
or the result of conditions that occur in the hardware.
For more details, see the
Playing and Capturing Audio Data
chapter.
