PtDivider

A container that divides space among its children

Class hierarchy:

PtWidget --> PtBasic --> PtContainer --> PtCompound --> PtDivider

For more information, see the diagram of the widget hierarchy.

PhAB icon:

PtDivider button in PhAB

Public header:

<photon/PtDivider.h>

Description:

The PtDivider widget is a container that lays out its children like a one-row or one-column PtGroup widget, but allows the user to resize the children by dragging "handles" placed between the children.


PtDivider

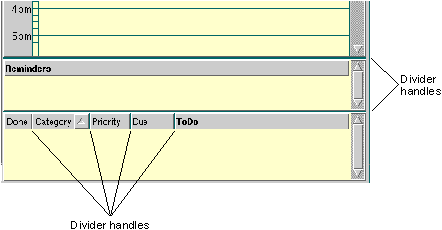

Two PtDivider widgets: one contains a scroll area and two lists, the other contains some buttons.


The PtDivider class inherits resources from the PtGroup class. Access to these resources is controlled through PtDivider's exporting mechanism.

A blocking mechanism lets PtDivider block the inheritance of certain resources from its subordinate PtGroup widget. This prevents any actions that would negatively affect the look and behavior of a PtDivider widget. For more information, see the "Exported subordinate children" section.

New resources:

Resource C type Pt type Default
Pt_ARG_DIVIDER_FLAGS unsigned short Flag Pt_DIVIDER_RESIZE_BOTH
Pt_ARG_DIVIDER_OFFSET short Scalar 0
Pt_ARG_DIVIDER_SIZES PtDividerSizes_t, short Array NULL, 0 (read-only)
Pt_CB_DIVIDER_DRAG PtCallback_t * Link NULL

Pt_ARG_DIVIDER_FLAGS

C type Pt type Default
unsigned short Flag Pt_DIVIDER_RESIZE_BOTH

Possible values:

Pt_DIVIDER_NORESIZE
Don't resize the children, just invoke the callback.
Pt_DIVIDER_RESIZE_BOTH
Resize both widgets: the one to the left and to the right (or above and below) the dragged handle. If this flag isn't set, only the left child will be resized and the right child will be moved.
Pt_DIVIDER_INVISIBLE
Never display the drag outline. This flag is useful mainly when Pt_DIVIDER_NORESIZE is also set.

Pt_ARG_DIVIDER_OFFSET

C type Pt type Default
short Scalar 0

This number is added to positions of child widgets (relative to the position of the PtDivider widget) when the values for the Pt_ARG_DIVIDER_SIZES resource are calculated. By setting the Pt_ARG_DIVIDER_OFFSET resource you can make the Pt_ARG_DIVIDER_SIZES resource relative to any arbitrary point.

Pt_ARG_DIVIDER_SIZES (read-only)

C type Pt type Default
PtDividerSizes_t, short Array NULL, 0

The array of positions and sizes of realized children of the divider. Each PtDividerSizes_t structure contains:

short from
The left side or top of the child, depending on the divider's orientation.
short to
The right or bottom of the child, depending on the divider's orientation.

Pt_CB_DIVIDER_DRAG

C type Pt type Default
PtCallback_t * Link NULL

A list of callbacks that are invoked after each drag event received by the widget.

If the widget has the Pt_CALLBACKS_ACTIVE bit set in its Pt_ARG_FLAGS resource, these callbacks are also invoked when the size of a child is changed by a call to PtSetResources().

Each callback is passed a PtCallbackInfo_t structure that contains at least the following members:

reason
The name of the callback resource that caused this callback to be invoked (Pt_CB_DIVIDER_DRAG in this case).
reason_subtype
The subtype of the drag event (see Ph_EV_DRAG in the description of the PhEvent_t structure in the Photon Library Reference), or Pt_CB_DIVIDER_SETRESOURCES if a child is being resized through PtSetResources() and the widget has the Pt_CALLBACKS_ACTIVE bit set in its Pt_ARG_FLAGS resource.
event
The received drag event, or NULL if a child is being resized through PtSetResources().
cbdata
A pointer to a PtDividerCallback_t structure that contains at least the following members:
PtWidget_t *left, *right;
The two widgets in the group separated by the divider.
int moved;
How far the widget on the right has been moved.
int resized;
The amount by which the widget on the left has been resized.
PtDividerSizes_t const *sizes;
The new value of the Pt_ARG_DIVIDER_SIZES resource.
int nsizes;
The number of items in the sizes array.

These callbacks should return Pt_CONTINUE.

Exported subordinate children:

Unless the resources are already defined in PtDivider, the PtDivider class uses the resources of its exported subordinate child, PtGroup.

Where PtDivider and PtGroup both define resources having the same name, the resource defined in PtDivider takes precedence.

Inherited resources:

If PtDivider modifies an inherited resource, the "Default override" column indicates the new value. If PtDivider inherits a resource from PtGroup, the default value assigned by PtGroup is inherited too; the "Default override" column shows this default value.

Resource Inherited from Default override
Pt_ARG_ANCHOR_FLAGS PtContainer 0 (no anchors)
Pt_ARG_ANCHOR_OFFSETS PtContainer
Pt_ARG_AREA PtWidget
Pt_ARG_BANDWIDTH_THRESHOLD PtBasic Ph_BAUD_CONSOLE (see below)
Pt_ARG_BITMAP_CURSOR PtWidget
Pt_ARG_BORDER_WIDTH PtWidget 0
Pt_ARG_BOT_BORDER_COLOR PtBasic
Pt_ARG_COLOR PtBasic
Pt_ARG_CONTAINER_FLAGS PtContainer Sets Pt_AUTO_EXTENT and Pt_CHILD_MOVED_RESIZED
Pt_ARG_CURSOR_COLOR PtWidget
Pt_ARG_CURSOR_TYPE PtWidget
Pt_ARG_DATA PtWidget
Pt_ARG_DIM PtWidget
Pt_ARG_EFLAGS PtWidget Clears Pt_DAMAGE_ON_FOCUS, sets Pt_CONSUME_EVENTS
Pt_ARG_FILL_COLOR PtBasic
Pt_ARG_FILL_PATTERN PtBasic
Pt_ARG_FLAGS PtWidget
Pt_ARG_GROUP_FLAGS PtGroup Sets Pt_GROUP_STRETCH flag
Pt_ARG_GROUP_HORZ_ALIGN PtGroup
Pt_ARG_GROUP_ORIENTATION PtGroup Pt_GROUP_HORIZONTAL
Pt_ARG_GROUP_ROWS_COLS PtGroup Blocked by this class.
Pt_ARG_GROUP_SPACING PtGroup 0
Pt_ARG_GROUP_SPACING_X PtGroup Blocked by this class.
Pt_ARG_GROUP_SPACING_Y PtGroup Blocked by this class.
Pt_ARG_GROUP_VERT_ALIGN PtGroup 0
Pt_ARG_HELP_TOPIC PtWidget
Pt_ARG_HIGHLIGHT_ROUNDNESS PtBasic
Pt_ARG_MARGIN_HEIGHT PtBasic
Pt_ARG_MARGIN_WIDTH PtBasic
Pt_ARG_POS PtWidget
Pt_ARG_RESIZE_FLAGS PtWidget 0
Pt_ARG_TOP_BORDER_COLOR PtBasic
Pt_ARG_TRANS_PATTERN PtBasic
Pt_ARG_USER_DATA PtWidget
Pt_CB_ACTIVATE PtBasic
Pt_CB_ARM PtBasic
Pt_CB_BALLOONS PtContainer
Pt_CB_BLOCKED PtWidget
Pt_CB_DESTROYED PtWidget
Pt_CB_DISARM PtBasic
Pt_CB_FILTER PtContainer
Pt_CB_GOT_FOCUS PtBasic
Pt_CB_HOTKEY PtWidget
Pt_CB_LOST_FOCUS PtBasic
Pt_CB_MENU PtBasic
Pt_CB_RAW PtWidget
Pt_CB_REALIZED PtWidget
Pt_CB_REPEAT PtBasic
Pt_CB_RESIZE PtContainer
Pt_CB_UNREALIZED PtWidget
Pt_ARG_BANDWIDTH_THRESHOLD
Defines the "graphics bandwidth" threshold that determines whether the widget will resize the children after each received drag event or only once, when the drag is completed - see PtQuerySystemInfo().
Pt_ARG_GROUP_ORIENTATION
The value of this resource can only be Pt_GROUP_HORIZONTAL or Pt_GROUP_VERTICAL.
