PtClock

An analog, digital, or LED clock

Class hierarchy:

PtWidget --> PtBasic --> PtClock

For more information, see the diagram of the widget hierarchy.

PhAB icon:

PtClock button in PhAB

Public header:

<photon/PtClock.h>

Description:

A PtClock draws a clock and can optionally update its display periodically (about once a second) to reflect the current time.

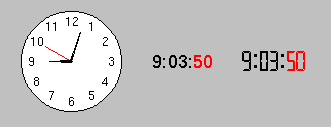

PtClock


Analog, digital, and LED clocks created by PtClock.


This isn't necessarily an accurate way to track time.


Note: The widget may flicker excessively, particularly if a transparent fill color is used. To reduce flicker:
  • Use a nontransparent fill color.
  • Disable the display of seconds.
  • Place the clock in a PtDBContainer widget.

New resources:

Resource C type Pt type Default
Pt_ARG_CLOCK_FACE_COLOR PgColor_t Scalar Pg_WHITE
Pt_ARG_CLOCK_FACE_OUTLINE_COLOR PgColor_t Scalar Pg_BLACK
Pt_ARG_CLOCK_FLAGS long Flag See below.
Pt_ARG_CLOCK_FONT char * String "helv12"
Pt_ARG_CLOCK_HOUR short Scalar Pt_CLOCK_CURRENT
Pt_ARG_CLOCK_HOUR_COLOR PgColor_t Scalar Pg_BLACK
Pt_ARG_CLOCK_HOUR_OFFSET short Scalar 0
Pt_ARG_CLOCK_MINUTE short Scalar Pt_CLOCK_CURRENT
Pt_ARG_CLOCK_MINUTE_COLOR PgColor_t Scalar Pg_BLACK
Pt_ARG_CLOCK_MINUTE_OFFSET short Scalar 0
Pt_ARG_CLOCK_SECOND short Scalar Pt_CLOCK_CURRENT
Pt_ARG_CLOCK_SECOND_COLOR PgColor_t Scalar Pg_RED
Pt_ARG_CLOCK_SECOND_OFFSET short Scalar 0
Pt_ARG_CLOCK_SEP1 char * String ":"
Pt_ARG_CLOCK_SEP1_COLOR PgColor_t Scalar Pg_BLACK
Pt_ARG_CLOCK_SEP2 char * String ":"
Pt_ARG_CLOCK_SEP2_COLOR PgColor_t Scalar Pg_BLACK
Pt_ARG_CLOCK_TYPE short Scalar Pt_CLOCK_ANALOG
Pt_CB_CLOCK_TIME_CHANGED PtCallback_t * Link NULL

Pt_ARG_CLOCK_FACE_COLOR

C type Pt type Default
PgColor_t Scalar Pg_WHITE

The fill color of the clock's face (applicable only for analog clocks).

Pt_ARG_CLOCK_FACE_OUTLINE_COLOR

C type Pt type Default
PgColor_t Scalar Pg_BLACK

The color of the line drawn around the clock face (applicable only for analog clocks).

Pt_ARG_CLOCK_FLAGS

C type Pt type Default
long Flag Pt_CLOCK_TRACK_TIME | Pt_CLOCK_SHOW_SECONDS | Pt_CLOCK_SHOW_NUMBERS

Defines the clock's behavior. Possible values are:

Pt_CLOCK_24_HOUR
Use a 24-hour display rather than conventional 12-hour format. This flag overrides Pt_CLOCK_SHOW_AMPM.
Pt_CLOCK_PAD_HOURS
Pad the hour field with a leading zero such that there are always 2 digits in the hours field (applicable only for digital or LED clocks).
Pt_CLOCK_SHOW_AMPM
Display an AM/PM indicator. For digital clocks, this is rendered as an AM or PM suffix. For LED clocks, this is rendered as a dot in the upper right corner (AM) or lower right corner (PM) of the display. This flag has no effect on analog clocks, and is overridden by the Pt_CLOCK_24_HOUR flag.
Pt_CLOCK_SHOW_NUMBERS
Display numbers on the face (applicable only for analog clocks).
Pt_CLOCK_SHOW_SECONDS
Display the seconds component of the time.
Pt_CLOCK_TRACK_TIME
Update the clock every second to reflect the current time. If this flag isn't set, the clock holds its current setting until it's changed programmatically or the flag is reenabled.

Pt_ARG_CLOCK_FONT

C type Pt type Default
char * String "helv12"

The font to use. For analog clocks, this applies to the numbers on the face (if displayed). For digital clocks, this applies to the entire display.

Pt_ARG_CLOCK_HOUR

C type Pt type Default
short Scalar Pt_CLOCK_CURRENT

The current hour setting for the clock (reflecting the current system clock setting if Pt_CLOCK_TRACK_TIME is set). This value is in 24-hour format. When setting this resource, a value of Pt_CLOCK_CURRENT causes the clock to assume the current system time setting.

Pt_ARG_CLOCK_HOUR_COLOR

C type Pt type Default
PgColor_t Scalar Pg_BLACK

The color to use when drawing the hours component.

Pt_ARG_CLOCK_HOUR_OFFSET

C type Pt type Default
short Scalar 0

Offset the clock setting by this amount when displaying the hours field.

Pt_ARG_CLOCK_MINUTE

C type Pt type Default
short Scalar Pt_CLOCK_CURRENT

The current minute setting for the clock (reflecting the current system clock setting if Pt_CLOCK_TRACK_TIME is set). When setting this resource, a value of Pt_CLOCK_CURRENT causes the clock to assume the current system time setting.

Pt_ARG_CLOCK_MINUTE_COLOR

C type Pt type Default
PgColor_t Scalar Pg_BLACK

The color to use when drawing the minutes component.

Pt_ARG_CLOCK_MINUTE_OFFSET

C type Pt type Default
short Scalar 0

Offset the clock setting by this amount when displaying the minutes field.

Pt_ARG_CLOCK_SECOND

C type Pt type Default
short Scalar Pt_CLOCK_CURRENT

The current second setting for the clock (reflecting the current system clock setting if Pt_CLOCK_TRACK_TIME is set). When setting this resource, a value of Pt_CLOCK_CURRENT causes the clock to assume the current system time setting.

Pt_ARG_CLOCK_SECOND_COLOR

C type Pt type Default
PgColor_t Scalar Pg_RED

The color to use when drawing the seconds component.

Pt_ARG_CLOCK_SECOND_OFFSET

C type Pt type Default
short Scalar 0

Offset the clock setting by this amount when displaying the seconds field.

Pt_ARG_CLOCK_SEP1

C type Pt type Default
char * String ":"

The separator to use between the hours and minutes field (applicable only for digital clocks; LED clocks always use a colon). Only the first character of the string is used.

Pt_ARG_CLOCK_SEP1_COLOR

C type Pt type Default
PgColor_t Scalar Pg_BLACK

The color to use when drawing the separator character between hours and minutes.

Pt_ARG_CLOCK_SEP2

C type Pt type Default
char * String ":"

The separator to use between the minutes and seconds field (applicable only for digital clocks with Pt_CLOCK_SHOW_SECONDS set; LED clocks always use a colon). Only the first character of the string is used.

Pt_ARG_CLOCK_SEP2_COLOR

C type Pt type Default
PgColor_t Scalar Pg_BLACK

The color to use when drawing the separator character between minutes and seconds.

Pt_ARG_CLOCK_TYPE

C type Pt type Default
short Scalar Pt_CLOCK_ANALOG

The clock type:

Pt_CLOCK_DIGITAL
A numeric display (using system fonts).
Pt_CLOCK_LED
A scalable display that resembles conventional LED/LCD digital clocks.
Pt_CLOCK_ANALOG
An analog clock with hands.

Pt_CB_CLOCK_TIME_CHANGED

C type Pt type Default
PtCallback_t * Link NULL

A list of callbacks invoked when the time on the clock changes. This occurs once a second if Pt_CLOCK_SHOW_SECONDS is set, otherwise once every minute when the minute changes.

These callbacks are also invoked whenever a call to PtSetResources() causes a time change, provided the Pt_CALLBACKS_ACTIVE flag is set (see PtWidget).

Each callback is passed a PtCallbackInfo_t structure that contains at least the following members:

reason
The name of the callback resource (Pt_CB_CLOCK_TIME_CHANGED) that caused this callback to be invoked.
reason_subtype
Why this callback was invoked. This value is a flag that may contain any of the following (ORed together):
event
The event that caused the callback. If event is NULL, the callback was invoked because the time setting was changed programmatically using a called to PtSetResources().
cbdata
A pointer to a PtClockTimeCallback_t structure that contains at least:

These callbacks should return Pt_CONTINUE.

Inherited resources:

If the widget modifies an inherited resource, the "Default override" column indicates the new value. This modification affects any subclasses of the widget.

Resource Inherited from Default override
Pt_ARG_AREA PtWidget
Pt_ARG_BANDWIDTH_THRESHOLD PtBasic Not used by this class.
Pt_ARG_BITMAP_CURSOR PtWidget
Pt_ARG_BORDER_WIDTH PtWidget
Pt_ARG_BOT_BORDER_COLOR PtBasic
Pt_ARG_COLOR PtBasic
Pt_ARG_CURSOR_COLOR PtWidget
Pt_ARG_CURSOR_TYPE PtWidget
Pt_ARG_DATA PtWidget
Pt_ARG_DIM PtWidget
Pt_ARG_EFLAGS PtWidget
Pt_ARG_FILL_COLOR PtBasic
Pt_ARG_FILL_PATTERN PtBasic
Pt_ARG_FLAGS PtWidget
Pt_ARG_HELP_TOPIC PtWidget
Pt_ARG_HIGHLIGHT_ROUNDNESS PtBasic
Pt_ARG_MARGIN_HEIGHT PtBasic 1
Pt_ARG_MARGIN_WIDTH PtBasic 1
Pt_ARG_POS PtWidget
Pt_ARG_RESIZE_FLAGS PtWidget Pt_RESIZE_XY_AS_REQUIRED
Pt_ARG_TOP_BORDER_COLOR PtBasic
Pt_ARG_TRANS_PATTERN PtBasic
Pt_ARG_USER_DATA PtWidget
Pt_CB_ACTIVATE PtBasic
Pt_CB_ARM PtBasic
Pt_CB_BLOCKED PtWidget
Pt_CB_DESTROYED PtWidget
Pt_CB_DISARM PtBasic
Pt_CB_GOT_FOCUS PtBasic
Pt_CB_HOTKEY PtWidget
Pt_CB_LOST_FOCUS PtBasic
Pt_CB_MENU PtBasic
Pt_CB_RAW PtWidget
Pt_CB_REALIZED PtWidget
Pt_CB_REPEAT PtBasic
Pt_CB_UNREALIZED PtWidget
