Measuring Boot Times

Developers and system designers can employ many techniques to meet early boot requirements. However, before applying any of the techniques described here, always remember to get a stable baseline measurement of system boot speed. That way, when you start making changes, you can ensure that you're making real progress towards meeting your requirements.

To optimize any boot stage, you must measure its duration, modify the code, then measure again to see how much timing has improved. Some basic techniques exist for measuring time; their applicability depends on the starting point of the measurement. There are key points where you can measure times:

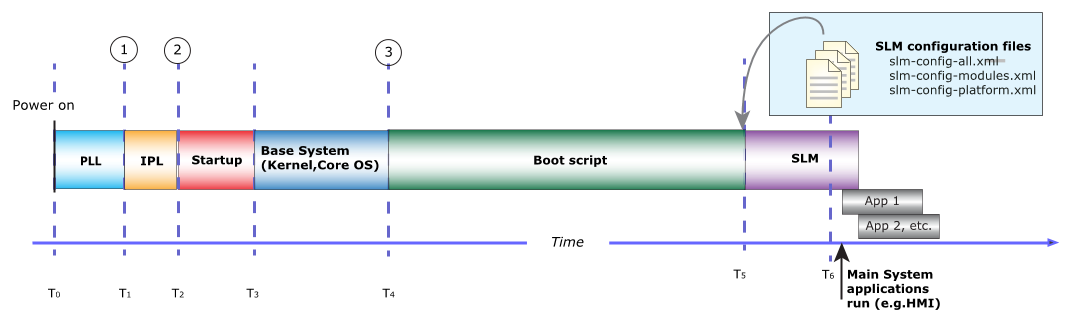

Figure 1. Startup sequence

The table that follows describes some of the techniques that you can be use to measure times at these points in the bootup sequence:

Start Time Technique Accuracy Description Pros and Cons
After the kernel is running TraceEvent() Microseconds Uses the instrumented kernel (procnto-instr) and collects data with tracelogger or the IDE system profiler. Customer code is sprinkled with calls to the TraceEvent() function. Can display grpahics when your process is executing, as well as all other system activity. The developer must set up the instrumented kernel.
After the kernel is running time Milliseconds Command-line utility gives approximate execution time of a process. Measurement is unavailable until the process in question terminates.
After the kernel is running ClockCycles() Nanoseconds System function that uses a high-speed CPU counter to determine the number of clock cycles from power-on to the point when ClockCycles() is called. Measures absolute time. Doesn’t necessarily reflect time spent in the measured process, since the kernel may have scheduled other threads during time of measurement.
After the kernel is running slogf() / slog2info Seconds System logger function, used with slogger2. Inaccurate timing; used mainly to determine sequence of events.
After the startup driver starts and before the kernel is running ClockCycles() (macro) Nanoseconds Not a function, but a macro that reads the CPU’s hardware counter directly. Gives the same result as the OS-level function of the same name, which is available after kernel boot. Not supported on all architectures; works only if ClockCycles() is read directly from a hardware register, and not a derived value.
After the IPL starts and before the kernel is running GPIO and scope Nanoseconds The customer code switches a GPIO pin on and off at various points in the code. A digital oscilloscope measures these level changes or pulses to determine the time between events. Distinguishing different points is impossible. Requires a free GPIO in the hardware design, as well as a digital scope and significant setup.
Before the IPL starts Hardware lines and scope Nanoseconds Measures hardware lines (like CPU reset) and GPIO. Same as above.

For the TraceEvent() technique, you must use the instrumented kernel and load tracelogger early in the boot script. For instance, to log the first ten seconds of boot time, you would use this command:

tracelogger –n0 -s10

See the tracelogger documentation and the System Analysis Toolkit User's Guide for details on how to analyze the resulting .kev (kernel event trace) file.

To measure the absolute time since reset at various points in your boot script, simply print out the ClockCycles() value:

#include <stdlib.h>
#include <stdio.h>
#include <sys/neutrino.h>
#include <sys/syspage.h>
#include <inttypes.h>
int main( int argc, char *argv[])
    uint64_t timesinceboot_ms;
    timesinceboot_ms = (ClockCycles() /
    printf( "ClockCycles()=%llu ms\n", timesinceboot_ms);
    return EXIT_SUCCESS;

This technique lets you measure how long it takes your code to execute the IPL and startup phases. Normally, you would use the ClockCycles() value to measure relative time: you record the value of ClockCycles() at two points, then subtract the first value from the second value to get the duration of an event. In this case, however, we’re using ClockCycles() to measure the absolute time that has elapsed since the CPU power was applied.

This approach comes with some caveats:
