Analyzing heap memory usage with System Information and the debugger

The QNX System Information perspective displays details about a process' memory, including heap segments. These details let you observe how the heap usage changes as you interact with an application or you move between breakpoints with the debugger.

When an application is running, you can select one of its processes in the Target Navigator and examine that process' memory distribution in the Memory Information view. If you want to know which areas of code allocate a lot of heap memory, you can add breakpoints at strategic places (see the “Using breakpoints, watchpoints, and breakpoint actions” entry in the C/C++ Development User Guide for information on doing so), then run the application with the debugger.

For convenience, you can open the Memory Information view in the Debug perspective. Then, you can start, pause, and resume execution and check how much memory is allocated between breakpoints:

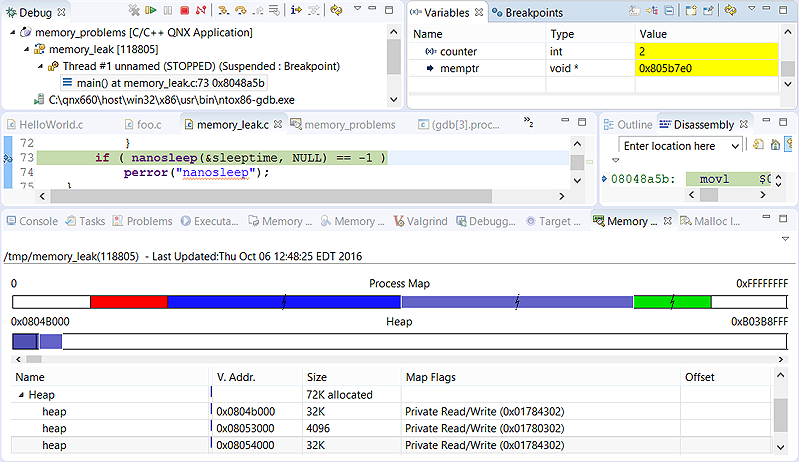

Screenshot of a program stopped at a breakpoint while being debugged, with the Memory Information view opened and the heap segment data shown
