The video capture API includes enumerated values that specify deinterlacing behavior.
About deinterlacing
Deinterlacing can use a variety of techniques:
- Adaptive
- Use a motion-adaptive filter. This type of deinterlacing is usually done by the
hardware.
- Bob
- Take the lines of each field and double them. This technique retains the original temporal
resolution.
- Bob 2
- Discard one field out of each frame to improve the video quality. The temporal resolution is
halved, however.
- Weave
- Combine two consecutive fields together. The temporal resolution is halved: the resulting
frame rate is half of the original field rate.
- Weave 2
- Similar to weave, but the resulting frame rate is the same as the
original field rate.

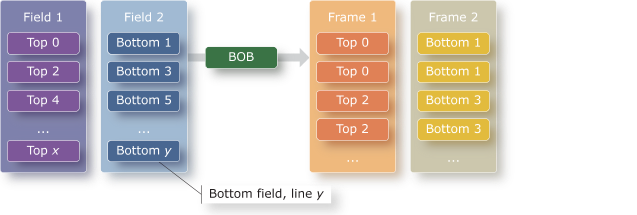

Figure 1. Deinterlacing in BOB mode
Enumerated values
enum capture_deinterlace_mode {
CAPTURE_DEINTERLACE_NONE_MODE = 0,
CAPTURE_DEINTERLACE_WEAVE_MODE,
CAPTURE_DEINTERLACE_BOB_MODE,
CAPTURE_DEINTERLACE_BOB2_MODE,
CAPTURE_DEINTERLACE_WEAVE2_MODE,
CAPTURE_DEINTERLACE_MOTION_ADAPTIVE_MODE,
};
The following enumerated types are used for setting the deinterlacing mode:
- CAPTURE_DEINTERLACE_NONE_MODE
- 0
- Don't deinterlace.
- CAPTURE_DEINTERLACE_WEAVE_MODE
- Use weave deinterlacing mode.
- CAPTURE_DEINTERLACE_BOB_MODE
- Use bob deinterlacing mode.
- CAPTURE_DEINTERLACE_BOB2_MODE
- Use alternate bob deinterlacing mode.
- CAPTURE_DEINTERLACE_WEAVE2_MODE
- Use alternate weave deinterlacing mode.
- CAPTURE_DEINTERLACE_MOTION_ADAPTIVE_MODE
- Use motion adaptive deinterlacing mode.
Buffer properties
The
CAPTURE_PROPERTY_*_BUFFER_ types store buffer properties:
- CAPTURE_PROPERTY_MIN_NBUFFERS
- CAPTURE_PROPERTY( 'Q', 'M', 'N', 'B' )
- Read uint32_t
- Minimum number of buffers required for a specific deinterlacing mode.
For properties used for deinterlacing frames from external sources (e.g., USB stick) see "External source properties".
