The Screen API is how your applications
communicate with Screen.
The principal components of the Screen API are
closely associated with each other.

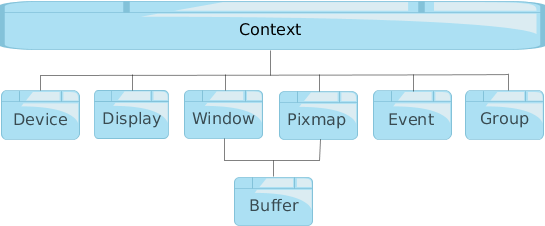

Figure 1.
Screen API components
- Context
- A context provides the setting for graphics operations
within the windowing environment.
- All other API objects are created within the scope of a context and access to
these objects is always with respect to the context associated with the object.
You can identify and gain access to the objects on which you want to
draw (e.g., windows, groups, displays, pixmaps) to set or change their
properties and attributes.
- Devices, displays and windows are dependent on the context, which is
associated directly with events, groups, and pixmaps.
- Device
- A device refers to an input device. This input device (e.g., keyboard, mouse,
joystick, gamepad, and multi-touch) can be focused to specific displays.
- Display
- A display refers to a physical device that presents images to
viewers such as monitors, touchscreen and displays.
Using the display-specific API components, you can gain access
to display properties, modes, and vsync operations.
- Window
- A window represents the fundamental drawing surface.
Windows can display different kinds of content for different
purposes, and so there are multiple types of windows available:
application windows, child windows, and embedded windows.
- Pixmap
- A pixmap is similar to a bitmap except that it can have
multiple bits per pixel (a measurement of the depth of the
pixmap) that store the intensity or color component values.
Bitmaps, by contrast, have a depth of one bit per pixel.
- You can draw directly onto a pixmap surface, outside the
viewable area, and then copy the pixmap to a buffer later on.
- Event
- An event includes such actions as window creation, setting
properties, keyboard events, and touch events. Events are
associated with a context.
Screen API manages one event queue per
context.
- Group
- A group is used to organize and manage multiple windows in
your application. Windows belonging to a group share the same
properties; therefore, you apply sets of properties to all
the windows that are in the same group.
- Buffer
- A buffer is an area of memory not displayed where you can move
data around quickly without taking up CPU cycles. Although a
buffer can be created in the scope of a context, it cannot
be used unless attached to a window or pixmap.
-
Multiple buffers can be associated with a window whereas only
one buffer can be associated with a pixmap.
