Thread State Snapshot view

In addition to asking why a particular process's thread may be running, developers are often faced with the task of understanding what the rest of the system is doing at a particular point in time. This question can easily be answered using the Thread State Snapshot view (Window > Show View > Other… > QNX System Profiler > Thread State Snapshot).

Thread State Snapshot view is determined by the current cursor position in the System Profiler editor Timeline pane. For a given time/position, it determines the state of all of the threads in the system.

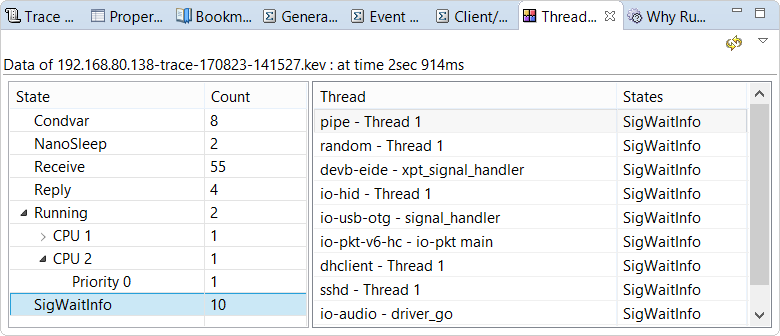

Figure 1. The System Profiler's Thread State Snapshot view.

Note that when you select a point in the Timeline, you must click the Refresh icon in the Thread State Snapshot view's toolbar to update the contents of the Thread State Snapshot view .
