PtPrintPropSelect()

Change the printing options for a selected printer via a modal dialog

Synopsis:

int PtPrintPropSelect(
       PtWidget_t *parent,
       char const *title,
       PtPrintPropSelectionInfo_t *info );

Arguments:

parent
A pointer to the parent widget. If this argument isn't NULL, the parent widget is blocked while the dialog is displayed.
title
The title of the print-properties dialog.
info
A pointer to a PtPrintPropSelectionInfo_t structure (see below).

Library:

ph

Description:

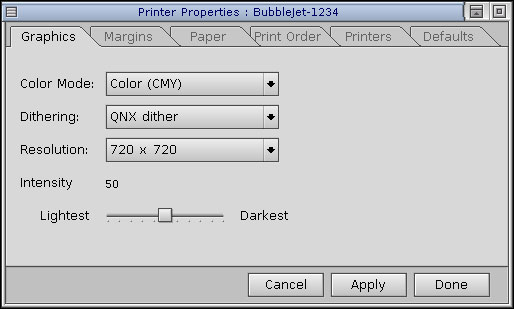

This function displays a dialog for modifying most of the print parameters for a particular printer:

PtPrintPropSelect dialog

The display is limited to parameters and values that are valid for the selected printer.

A print context is passed to the function in the info argument. This print context is modified according to the state of the dialog when you press the Apply or Done button.

PtPrintPropSelect() also lets you load and save your own preferences, which are stored in personal print configuration files.

The PtPrintSel widget calls PtPrintPropSelect() when you press the Preferences button.

PtPrintPropSelectionInfo_t structure

The PtPrintPropSelectionInfo_t structure includes at least:

PpPrintContext_t *pcontext
A pointer to a PpPrintContext_t structure that describes the print context. You must create this structure by calling PpCreatePC(). Optionally, you can initialize the print context by calling PpLoadPrinter().
PhPoint_t pos
The position of the print-properties dialog; the meaning of this position depends on the parent argument, and on whether the Pt_PSP_CENTER bit is set or cleared in the flags member:
parent Bit pos
NULL Clear Relative to screen
NULL Set Ignored; the dialog is centered on the screen
non-NULL Clear Relative to parent
non-NULL Set Ignored; the dialog is centered on the parent
int flags
The flag bits are:
int num_args
The number of resources specified in the args array.
PtArg_t *args
A pointer to an array of resources for the dialog; see below.

Dialog “resources”

You can customize the print-properties dialog as if it were a widget with resources. You can set or get the values of these pseudo-resources for a PtPrintSel widget (see the Widget Reference).

All the resources are of this type:

C type Pt type Default
char * String See below

Main dialog buttons

Resource Default
Pt_ARG_PSP_LBL_CANCEL Cancel
Pt_ARG_PSP_LBL_APPLY Apply
Pt_ARG_PSP_LBL_DONE Done

Main dialog titles

Resource Default
Pt_ARG_PSP_LBL_TITLE Printer Properties
Pt_ARG_PSP_LBL_TITLE_PAPER Paper
Pt_ARG_PSP_LBL_TITLE_GRAPHICS Graphics
Pt_ARG_PSP_LBL_TITLE_MARGINS Margins
Pt_ARG_PSP_LBL_TITLE_PRINT_ORDER Print Order
Pt_ARG_PSP_LBL_TITLE_PRINTERS Printers
Pt_ARG_PSP_LBL_TITLE_DFLT Defaults

Paper pane

Resource Default
Pt_ARG_PSP_LBL_PAPERSIZE Paper Size
Pt_ARG_PSP_LBL_PAPERSOURCE Paper Source
Pt_ARG_PSP_LBL_PAPERTYPE Paper Type
Pt_ARG_PSP_LBL_ORIENTATION Orientation
Pt_ARG_PSP_LBL_PORTRAIT Portrait
Pt_ARG_PSP_LBL_LANDSCAPE Landscape

Graphics pane

Resource Default
Pt_ARG_PSP_LBL_COLORMODE Color Mode
Pt_ARG_PSP_LBL_DITHERING Dithering
Pt_ARG_PSP_LBL_RESOLUTION Resolution
Pt_ARG_PSP_LBL_INTENSITY Intensity
Pt_ARG_PSP_LBL_DARKEST Darkest
Pt_ARG_PSP_LBL_LIGHTEST Lightest

Margins pane

Resource Default
Pt_ARG_PSP_LBL_TOP Top
Pt_ARG_PSP_LBL_BOTTOM Bottom
Pt_ARG_PSP_LBL_LEFT Left
Pt_ARG_PSP_LBL_RIGHT Right
Pt_ARG_PSP_LBL_UNITS Units
Pt_ARG_PSP_LBL_INCHES 1000th inch
Pt_ARG_PSP_LBL_MILLIMETERS 100th mm

Defaults pane

Resource Default
Pt_ARG_PSP_LBL_SAVE_DFLT Save Personal Defaults
Pt_ARG_PSP_LBL_LOAD_DFLT Load Personal Defaults
Pt_ARG_PSP_LBL_LOAD_GLOBAL_DFLT Load Factory Settings

Printers pane

Resource Default
Pt_ARG_PSP_LBL_DEFAULT_PRINTER Default Printer
Pt_ARG_PSP_LBL_CURRENT_PRINTER Current Printer
Pt_ARG_PSP_LBL_FONTMAP Font Map

Print Order pane

Resource Default
Pt_ARG_PSP_LBL_REVERSED Print Reversed Order
Pt_ARG_PSP_LBL_DOUBLE_SIDED Print Double Sided
Pt_ARG_PSP_LBL_COLLATED Print Collated

Returns:

Pt_PSP_ERROR
An error occurred:
Pt_PSP_DONE
You pressed the Done button.
Pt_PSP_CANCEL
You pressed the Cancel button.

Note: If you press the Apply button, the contents of the print context might change, no matter which button you ultimately use to close the dialog. If PtPrintPropSelect() returns Pt_PSP_CANCEL, your application shouldn't assume that nothing changed.

Examples:

/*************************************
 *
 * psp.c
 *
 * Sample program illustrates usage of
 * PtPrintPropSelect() convenience function.
 *
 * Compile as follows:
 *   $ qcc -lph -o psp psp.c
 *
 * Run as follows:
 *   $ ./psp
 *
 *************************************/

#include <stdio.h>
#include <stdlib.h>
#include <Ph.h>
#include <Pt.h>

int main(int argc, char **argv )
{
   PtWidget_t *win;
   PtPrintPropSelectionInfo_t info;
   int r;
   PhDim_t dim;
   PtArg_t args[3];

   // Set base window dimension to 250x250 pixels
   dim.w = dim.h = 250;
   PtSetArg( args, Pt_ARG_DIM, &dim, 0 );

   // Connect to Photon, initialize widget lib, and
   // create a base window
   if ( NULL == (win = PtAppInit( NULL, &argc,
                                  argv, 1, args )) ) {
      fprintf( stderr, "\nPtAppInit failed.\n" );
      exit( -1 );
   }

   // Realize the base window
   PtRealizeWidget( win );

   // Initialize the info structure
   memset( &info, 0x0, sizeof( PtPrintPropSelectionInfo_t ) );

   // Modify a couple of string resources
   // Change the 'Apply' button's label
   PtSetArg( &args[0], Pt_ARG_PSP_LBL_APPLY,
             "MyApply", 0 );
   // Change the 'Done' button's label
   PtSetArg( &args[1], Pt_ARG_PSP_LBL_DONE,
             "MyDone", 0 );
   // Change the 'Margins' pane
   PtSetArg( &args[2], Pt_ARG_PSP_LBL_TITLE_MARGINS,
             "MyMargins", 0 );

   info.num_args = 3;
   info.args = args;

   // Set up the flags to prevent the display of the
   // 'Cancel' button.
   info.flags = Pt_PSP_NO_CANCEL_BUTTON;

   // Create a print-context.
   if ( NULL == (info.pcontext = PpCreatePC()) ) {
      fprintf( stderr, "\nUnable to create print context.\n" );
      PtExit( -1 );
   }

   // PtPrintPropSelect() will be blocked in its own modal loop
   // until the user presses the 'Esc' key, the 'MyDone' button,
   // or closes the dialog.
   //
   r = PtPrintPropSelect( win, "Adjust Settings", &info );

   // If the 'MyApply' button is pressed, then the current
   // settings in the dialog are applied to the print context.

   if ( Pt_PSP_ERROR == r )
     fprintf( stderr,
       "\nPtPrintPropSelect() failed. The print context was not \
modified.\n" );

   else if ( Pt_PSP_DONE == r )
     fprintf( stderr,
       "\n'MyDone' button pressed. The print context may have \
been modified.\n" );

   else // Pt_PSP_CANCEL == r
     fprintf( stderr,
       "\n'Esc' key pressed or dialog closed. The print \
context may have been modified.\n" );

   // Free the resources used by our print context.
   PpReleasePC( info.pcontext );

   PtMainLoop();
   return EXIT_SUCCESS;
}

Classification:

Photon

Safety:
Interrupt handler No
Signal handler No
Thread No

See also:

PpCreatePC(), PpPrintContext_t, PpSetPC(), PtPrintSelect(), PtPrintSelection()

PtPrintSel in the Widget Reference

Dialog modules in the Working with Modules chapter, and the Printing chapter of the Photon Programmer's Guide
