Timeline State Colors view

You can use the Timeline State Colors view (Window > Show View > Other… > QNX System Profiler > Timeline State Colors) if you're unfamiliar with the System Profiler timeline editor pane state colorings, or if you'd like to change the color settings to something more appropriate for your task.

The view displays a table with all of the color and height markers that are used when drawing the timeline display. These settings can be bulk imported and exported using the view's dropdown menu based on particular task requirements. The default settings generally categorize states with similar activities together (synchronization, waiting, scheduling, etc.).

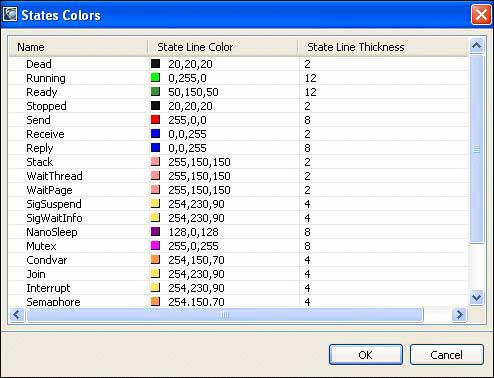

The System Profiler's Timeline State Colors view.
